mpx-vw-1616

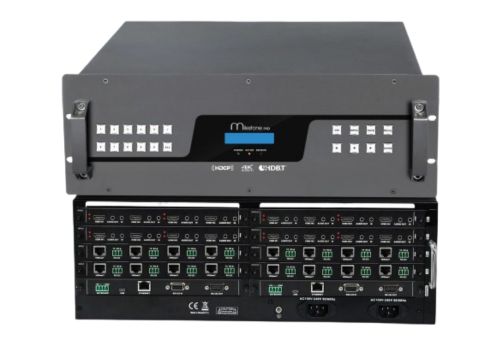

The MPX Series Hybrid Splicing Matrix is a modular LED/LCD processor designed for multimedia environments, with options in 3.5U, 6.5U, and 11U sizes. It supports 12 to 52 mixed input channels, ensuring flexibility and stability through FPGA-based hardware design. Featuring a front panel LCD display and buttons, the processor enables real-time IP address display and configuration. Its modular design supports arbitrary input/output card mixing for online maintenance and expansion, accompanied by hot-swappable fans and redundant power supplies for uninterrupted operation.
Features
- Multiple chassis size options are available: 3.5U, 6.5U, and 11U, supporting up to 12, 32, or 52 channels for mixed insertion.
- Hardware audio-video switcher and splicing processor based on FPGA architecture
- Front panel equipped with an LCD and buttons, providing a real-time display of device IP addresses and control over device switching
- Modular design supporting mixed insertion of input/output cards, online maintenance expansion, and redundant power supply
- Cross-conversion of various signals, including fiber, DVI, HDMI, and HDBaseT.
- Support for 4K resolution input signal capture, seamless output, and splicing output
- A single processor supports a maximum of 120 channels of 4096 x 2160 @60Hz 4:4:4 signal input.
- Each splicing output card can achieve video splicing and functions such as image window scaling and overlay.
- Support for irregular resolution settings, with a maximum of 4096 x 2160 @60Hz 4:4:4.
- High-definition background image settings are unaffected by power loss, supporting splicing base images.
- Real-time cropping, black edge removal, edge masking, and region enlargement for input videos
- Customization of large-screen banners, welcome slogans, real-time clock display, etc.
- Parallel processing of two signals, ensuring no black screens, no flickering, no fragments, and low latency.
- KVM management, allowing mouse and keyboard control of multiple computers with remote keyboard switching.
- Support for channel logos and character overlays, with customizable character colors, sizes, and positions.
- Splicing output supports multi-layer windows, resolution of 4096 x 2160 @60Hz 4:4:4.
