MP-WPB-8
Read this user manual carefully before using this product. Pictures shown in this manual is for reference only; different models and specifications are subject tothe real product. This manual is only for operation instructions, not for any maintenance usage.
Features

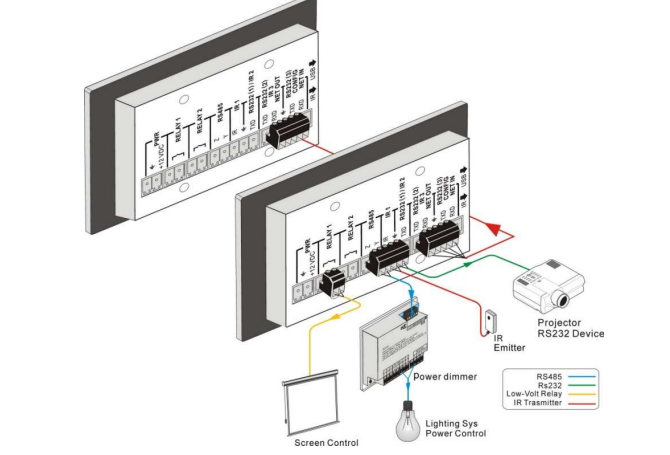

- Every button can be programmed to send the bi-directional RS232 and RS485 commands simultaneously to control third-party devices.
- Every button can be programmed to send the infrared code, control the relay, and let them work simultaneously to control the third-party devices.
- Every button is built with an infrared code and an RS232 code learning function, and a baud-rate setting
- ID looping function. 99pcs MP-WPB-8s can be looped and controlled together, by ID identifying.
- Programmed by USB or RS232, working with the PC software (PS-WP)
- Crystal and backlit buttons with easy, user-friendly, customizable, and changeable labels.
- The backlit brightness is controllable.
- Dimension: 11.4cm long and 7cm wide
Powered by Froala Editor
Specification
| Program Port | USB or RS232 | Output Port | 3 x RS232, 1 x RS485,3 x Infrared, 2 xRelay |
| Serial Control Port | RS232 | Baud Rate And Protocol | 9600 baud, 8 data bits, 1 stop bit, no parity |
| Software | PS-WP | Temperature | -20 ~ +70°C |
| Frequency Response | 20Hz ~20KHz | Humidity | 10% ~ 90% |
| Power Supply | 100VAC~240VAC, 50/60 Hz | Power Consumption | 1W |
| Case Dimensions | 114x70 x28mm | Product Weight | 0.15kg |
