MPHUC-T70WPT4K

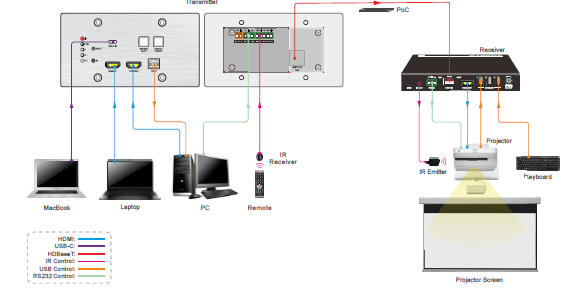

MPHUC-T70WPT4K is a 3x1 Wallplate Transmitter Switcher Kit, which consists of a wallplate transmitter switcher and a receiver. The kit is designed to switch and extend HDMI or USB C source signal to far end display device, and the transmission distance is up to 131ft/40m at 4K and 229ft/ 70m at 1080p video by using a single CATx cable. Moreover, bidirectional 24V PoC allows the switcher to powered from the compatible HDBaseT receiver , or the receiver can be powered from the switcher.
- Supports HDMI signal up to 4K@60H z 4:4:4, USB C signal up to 4K@ 3 0Hz 4:4:4.
- Supports HDMI V2.0 standard and HDCP 2.2 compliant. Ensures display of content protected media and interoperability with other HDCP compliant devices.
- Active input automatic detective.
- Extending HDMI signal 4K@60Hz up to 131ft/40m and 1080p@60Hz up to 229ft/70m.
- The USB C supports video and USB data transmission.
- Supports RS232 control with HDBaseT connection and local control.
- Supports bidirectional IR pass through to control display device from local and control source device from remote.
- Supports CEC to turn on/off display by the DISPLAY ON/OFF button, and the button can be programmed by IR learning feature or RS232 command.
- Supports bi directional 24 V PoC power supply and wide voltage power receiving (12~48V), only one power adapter
- Supports USB 2.0 KVM solutions.
- Micro USB port for firmware upgrade.
Powered by Froala Editor
| Switcher | |
| Input | |
| Input | (2) HDMI , (1) USB-C |
| Input Connector | (2 ) Female type A HDMI, (1) Type-C USB |
| HDMI Input Resolution | Up to 4K@60Hz 4:4:4 |
| USB-C Input Resolution | Up to 4K@ 30Hz 4:4:4 |
| Output | |
| Output | (1) HDBT OUT |
| Output Connector | (1) RJ45 |
| HDBT Output Resolution | Up to 4K@60Hz 4:4:4 |
| Control | |
| Control Ports | (1) IR, (1) (1) FIRMWARE, (1) RS232, (1) IR IN , (1) IR OUT |
| Control Connector | (1) Built in IR sensor, (1) Type B USB 2.0 (1) Micro USB, (2) 3 pin terminal block 1) 2 pin terminal block |
| General | |
| Bandwidth | 18Gbps |
| HDMI Version | 2.0 |
| HDCP Version | 2.2 |
| Transmission Distance | 1080p ≤ 230 feet (70 meters), 4K@60Hz ≤ 131 feet (40 meters) |
| External Power Supply | Input:100V to 240V AC ; Output: 24VDC 1.25A |
| Power Consumption | 20W (Max, add extra HDBaseT |
| Operation Temperature | -5 to +55℃ (+23° to +131°F) |
| Storage Temperature | -25 to +70℃ (13° to +158°F) |
| Relative Humidity | 10% to 90% |
| Dimension (W*H*D) | 146mm x 86 mm x 42 mm |
| Net Weight | 240g |
| Receiver | |
| Input | |
| Input | (1) HDBT |
| Input Connector | (1) RJ45 |
| Output | |
| Output | (1) HDMI |
| Output Connector | (1) Type-A female HDMI |
| Control | |
| Control port | (1) FW, (1) IR IN, (1) IR OUT, (1) RS232 , (3) USB IN |
| Control Connector | (1) Micro USB (2) 3.5mm (1) 3 pin terminal block (3) Type-A USB 2.0 |
| General | |
| Bandwidth | 18Gbps |
| HDMI Version | 2.0 |
| HDCCP Version | 2.2 |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| Transmission Distance | 1080p ≤ 230 feet (70 meters), 4K@60Hz ≤ 131 feet (40 meters) |
| AC Adapter Input Power | 100 to 240V AC, 50/60Hz |
| Input Power | 24V DC 1.25A |
| Power Consumption | 20W (Max, work with the switcher) |
| Operation Temperature | -5 to +55 55℃ (+23° to +131°) |
| Storage Temperature | -25 to +70 70℃ 13° to +158°F) |
| Relative Humidity | 10% to 90%, Non condensing |
| Dimension (W*H*D) | 152mm x 23.5mm x 84mm |
| Net Weight | 300g |
