MPTP-T100A
MPTP-T100A is an audio extender including Transmitter and Receiver. It is designed to extend the Stereo audio signal up to 170m, and the TOSLINK, COAX audio signal up to 290m via CATx cable.
- Three audio inputs can be switched: TOSLINK COAX/Stereo
- Three audio synchronous outputs: TOSLINK, COAX & RCA ( L+R)
- The Transmitter is powered by the Receiver 12VDC by PoC technology.
- The transmission distance of Stereo audio signal can up to 170m over a single CATx cable, and the TOSLINK, COAX audio signal up to 290m.
Powered by Froala Editor

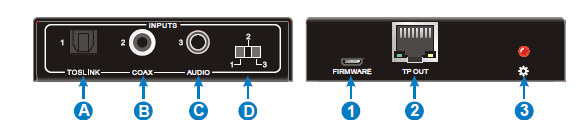

| Transmitter | Receiver | |
| Input | TOSLINK, COAX or AUDIO | 1 x TP IN |
| Output | 1 x TP OUT | TOSLINK, COAX & RCA (L+ |
| General | ||
| Audio Format | TOSLINK & COAX: PCM/Dobly/DTS; AUDIO: Stereo | |
| Sound Channel | TOSLINK & COAX: 2.0-7.1 | |
| Frequency Response | 20 Hz to 20 kHz, ±3 dB | |
| Sample Rate | TOSLINK & COAX: 48k/96k/192k 16bit/18bit/24bit | |
| Transmission Distance | Stereo: Up to 170m (CAT5e/6/7) TOSLINK/COAX: Up to 290m (CAT5e/6/7) | |
| Power Consumption | 2.5W (Max) | |
| Work Temperature | -10 ~ +55℃ | |
| Humidity | 10% ~ 90% | |
| Net Weight | Transmitter: 110g; Receiver: 119g | |
| Dimension(W*H*D) | 88mm x 80mm x 21.5mm | |
