MP-DA-4UHD-H2
Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to the real product. This manual is only for operation instructions. Please contact the local distributor for maintenance assistance. The functions described in this version were updated till October 2025. In the constant effort to improve the product, we reserve the right to make functions or parameters changes without notice or obligation. Please refer to the dealers for the latest details.
Features
- Supports HDMI 2.0 and video resolution up to 4K@60Hz 4:4:4.
- HDMI input supports HDCP 2.2, and the outputs support HDCP Active or HDCP Passive mode.

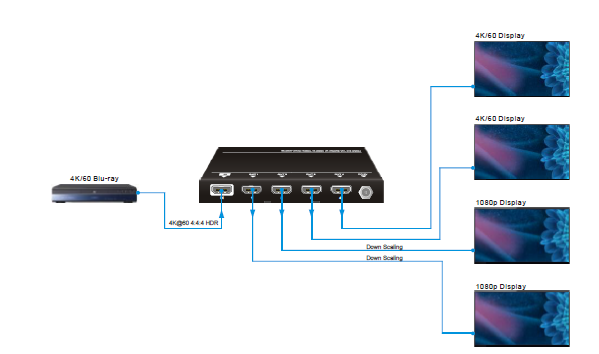

- Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080P output for compatibility with 1080P displays.
- 18Gbps high bandwidth.
- Advanced EDID management: multiple built-in EDID settings can be selected.
- Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.
- Supports CEC pass-through
- Provides LEDs to indicate the current operating status.
- Firmware upgrade via Micro-USB port.
Powered by Froala Editor
Specification
| Input | (1) HDMI | |
| Input Connector | (1) Type-A female HDMI | |
| HDMI Input Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit | |
| HDMI Standard | 2.0 | |
| HDCP Version | 2.2, 1.4 compliant | |
| CEC | Supported | |
| Output | (4) HDMI | |

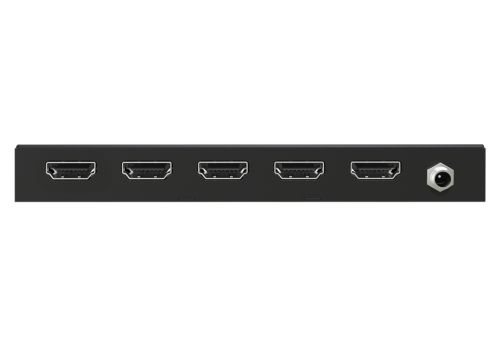

| Output Connector | (4) Type-A female HDMI | |
| HDMI Output Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit | |
| HDMI Standard | 2.0 | |
| HDCP Version | 2.2, 1.4 compliant | |
| CEC | Supported | |

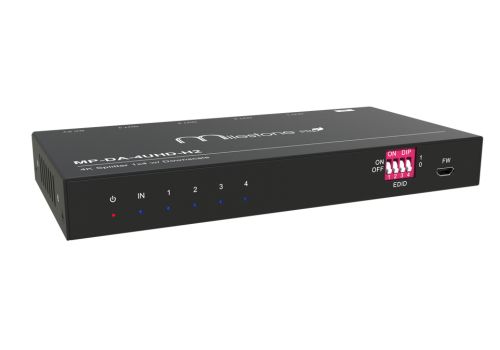

| Control Part | (1) EDID 4-pin DIP switch, (1) Micro-USB port | |
| Bandwidth | 18Gbps | |
| HDMI 2.0 Cable Length | 5V DC 1A Power Consumption 2.5W (Max)Dimension (W*H*D) 142.0mm x 17.6mm x | |
70.4mm Net | ||
|
