MP-FSC42M-H2
Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to the real product. This manual is only for operation instructions. Please contact the local distributor for maintenance assistance. The functions described in this version were updated as of Nov.6th, 2025. In the constant effort to improve the product, we reserve the right to make function or parameter changes without notice or obligation. Please refer to the dealers for the latest details.
Features
- 4x2 HDMI 2.0 Matrix Switcher with 4 HDMI inputs and 2 HDMI outputs
- Supports 18Gbps bandwidth for 4K@60Hz 4:4:4 HDR.
- Supports analog and digital audio de-embedding output
- Supports 4K downscaling to 1080p

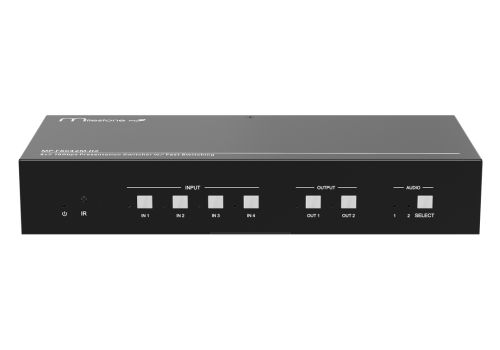

- Controlled via front panel buttons, RS-232, IR, and GUI
Powered by Froala Editor
Specifications
| Video Input | 4x HDMI 2.0, up to 3840x2160@60Hz 4:4:4 | |
| Video Output | 2x HDMI 2.0, up to 3840x2160@60Hz 4:4:4 | |
| Audio Input | 4x HDMI | |
| Audio Output | 1x SPDIF, for digital audio output /1x 5-pin L/R, for analog audio output | |
| Audio Output | 1x 5-pin terminal connector, for balancedstereoL/R audio. | |
| Frequency Response | 20 Hz to 20 kHz, ±1dB | |
| Max output level | 2 ± 0.1Vrms | |
| THD+N | < 0.05%, 20Hz - 20kHz | |
| Signal-to-Noise Ratio (SNR) | > 80dB | |
| Crosstalk isolation | < -80dB | |
| Stereo Channel Separation | > 80dB | |
| IR EYE | 1x 3.5mm jack | |
| RS-232 | 1x 3-pin serial port | |
| TCP/IP | 1x RJ-45 port | |
| Operation Temperature | 10℃ ~ +55℃ | |
| Storage Temperature | 25℃ ~ +70℃ | |
| Power | DC 12V/1A | |
| Power Consumption | 4.8W | |
| Dimension (W x H x D) | 260mm x 44mm x 115mm | |
 | ||
 | ||
 |
