MP-IP500

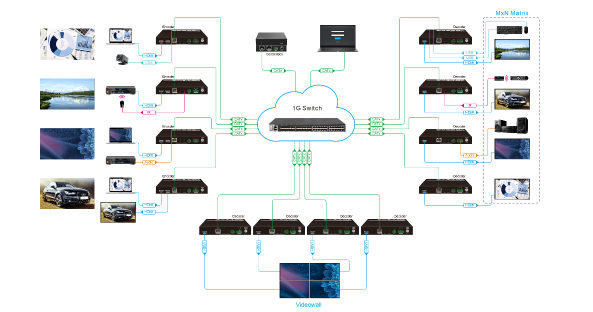

MP-IP500 is a network AV extender with HDMI encoder and decoder up to resolution 4K@60Hz 4:4:4, HDR. It is designed for HDMI transmission over IP network with control signals at distance up to 100m over CATx cable. It works with one control PC (Wake on IP control box ) and one 1GbE Switch to control a variety of functions.It provides one of the most advanced IP Streaming solutions on the market utilizing Aspeed technology, which synergizes various IP/AV standards to work together as one. IT features 4K video with 1 frame latency from encoder to decoder, Video wall, 1G IR, RS232, etc. It is ideal for distributing AV over 1 Gigabit Ethernet in enterprises and other large scale installations.
- Streams 4K video with 1 frame latency.
- Supports HDMI video resolution up to 4K@60Hz 4:4:4 8bit
- Transports RS232 and IR signal to any units.
- Support s Video Wall mode up to 9 x 9 screens.
- Selectable output resolutions up to 4K scaling ability.
- Additional 3 pin terminal block for audio embedding.
- IP control box for TCP/IP control.
Powered by Froala Editor
Encoder
| Input | |
| Video Input | (1) HDMI |
| Video Input Connector | (1) Type-A female HDMI |
| HDMI Input Resolution | Up to 4K@60Hz 4:4:4 8bit |
| Audio Input | (1) Analog Audio In |
| Audio Input Connector | (1) 3-Pin terminal block |
| Output | |
| Video Output | (1) IP Stream (1) HDMI |
| Video Output Connector | (1) RJ45, (1) Type-A female HDMI |
| HDMI Output Resolution | Up to 4K@60Hz 4:4:4 8bit |
| Audio Output | (1) IP Stream (1) De-embedding Output |
| Audio Output Connector | (1) RJ45, (1) 5-Pin terminal block |
| General | |
| Control | (1) IR IN, (1) IR OUT, (1) RS232, (1) host |
| Control Connector | (2) 3.5mm jack, (1) 3-pin terminal block (1) USB-B |
| Operation Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humidity | 10%-90% |
| Power Consumption | 11.52W (Max) |
| Dimension (W*H*D) | 180 x 142.7 x 25 mm |
| Net Weight | 570g |
Decoder
| Input | |
| Video Input | (1) IP Stream |
| Video Input Connector | (1) RJ45 |
| Output | |
| Video Output | (1) HDMI |
| Video Output Connector | (1) Type-A female HDMI |
| HDMI Output Resolution | Up to 4K@60Hz 4:4:4 8bit |
| Audio Output | (1) Analog audio output |
| Audio Output Connector | (1) 5-Pin terminal block |
| Audio Sample Rate | Support 48 kHz, 96 kHz, 192 kHz |
| THD+N | < 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level). |
| Frequency Response | 20Hz – 20KHz, ±1dB |
| SNR | > 90 dB, 20Hz - 20KHz bandwidth |
| Crosstalk Isolation | < - 80 dB, 1 10KHz sine at 0dBFS level (or max level before clipping). |
| Noise Level | < - 80 dBu |
| General | |
| Control | (1) IR IN, (1) IR OUT, (1) RS232 |
| Control Connector | (2) 3.5mm jack, (1) 3-pin terminal block |
| Operation Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humidity | 10%-90% |
| Power Consumption | 11.52W (Max) |
| Dimension (W*H*D) | 180 x 142.7 x 25 mm |
| Net Weight | 570g |
