MP-200UPI

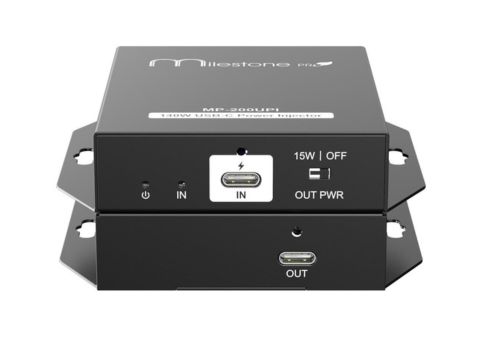

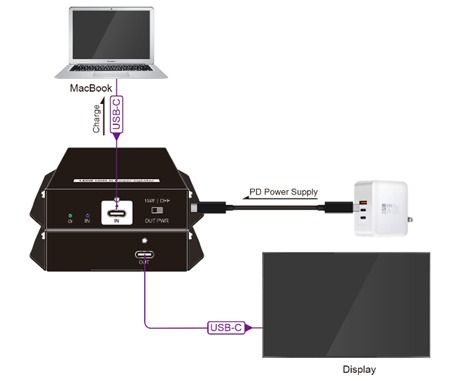

Milestone Pro MP-200UPI – 140W USB-C Power Injector The MP-200UPI is a high-power USB-C injector designed to deliver up to 140W of stable power for professional AV and conferencing setups. Equipped with a USB-C input, a USB-C output, and a selectable 15W auxiliary power switch, it ensures smooth, reliable power delivery over long cable runs. Ideal for powering laptops, touch panels, extenders, and other USB-C devices in modern installations.
Features
- PD 3.1 w/ 140W injection
- DP alt mode w/ 4K@60Hz 4:4:4 video
- Up to 10Gb USB3.2 Gen2 data rate
- Switchable power for USB-C OUT
- Firmware can be upgraded via USB-C
- USB-C input w/ locking hole
Powered by Froala Editor
Specification
| Input | 1x USB-C |
| output | 1× USB-C |
| Video | Input: Up to 4K@60Hz 4:4:4 Output: Up to 4K@60Hz 4:4: |
| USB | Data Rate: 10Gbps Device Power: 0 / 15W |
| PD Standard | PD 3.1 |
| Power Consumption | 3W (Exclude USB device load) |
| Dimension | 70(W) x 20(H) x 90(D) mm |
| Net Weight | 165g |
| Operation Temperature | -5 ~ +55 °C |
| Storage Temperature | -25 ~ +70 °C |
