MPHT-4T-H2

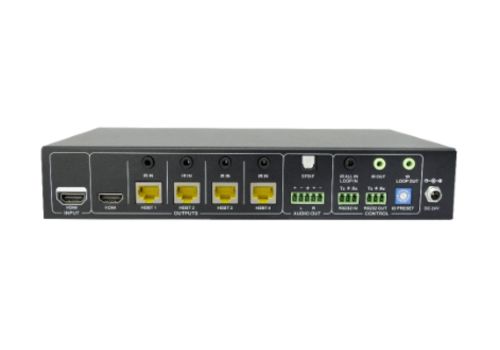

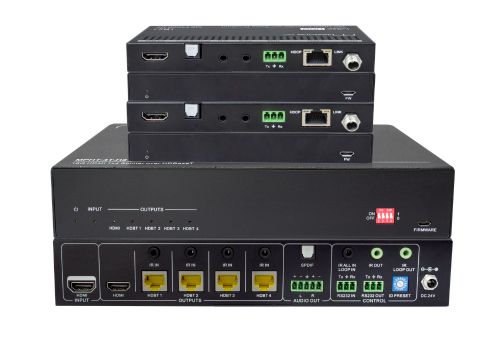

Thanks for choosing this 1x4 HDBaseT Splitter! This device accepts a single HDMI input and splits it into one HDMI and four HDBaseT outputs. The splitter is designed with an IR loop out and loop I, which are intended to cascade to additional units. It supports video resolutions up to 4K@60Hz, 4:4:4, 8-bit, and all HDMI audio formats. It can extend 1080p signals on each output to a distance of up to 229 feet (70 meters) and 4K signals to a distance of up to 131 feet (40 meters) over a single CATx Ethernet cable. It supports the Power over HDBaseT (PoC) feature, which allows the receivers to be powered from the splitter over the Ethernet cables. It supports bidirectional IR pass-through and IR, RS232 cascade control.
Features
- Support HDMI 2.0, video resolutions up to 4K@60Hz 4:4:4.
- Distribute one UHD/4K HDMI signal to four HDBaseT outputs and one loop HDMI output.
- Supports cascade connection, distributes video signal to multiple video displays.
- Maximum transmission distance is up to 40m for 4K, and 70m for 1080p.
- Supports video resolution down-scaling; 4K input can be automatically downgraded to 1080 output.
- Supports audio de-embedding.
- Each HDBaseT output supports IR pass-through.
- Support RS232 and IR cascade control.
- Support 24V PoC, the HDBaseT receiver can be powered by an HDBaseT splitter.
Powered by Froala Editor
| Input | (1)HDMI | |
| InputConnector | (1)FemaletypeAHDMI | |
| HDMI Input Resolution | Upto4K@60Hz4:4:48bit | |
| Output | (1)HDMI,(4)HDBT | |
| OutputConnector | (1)FemaletypeAHDMI;(4)RJ45 | |
| HDMIOutputResolution | Upto4K@60Hz4:4:4 | |
| HDBTOutputResolution | Upto4K@60Hz4:4:4(Signalhasbeencompressed.) | |
| AudioOutput | (1)SPDIF | |
| AudioOutputConnector | (1)Toslink | |
| AudioFormat | LPCM2ch,DolbyDigital2ch,5.1ch,7.1ch,DolbyTureHD7.1ch,DTS 2ch,5.1ch | |
| OutputLevel | ±0.05dBFS | |
| FrequencyResponse | 20Hz~20kHz,±1dB | |
| THD+N | <0.05%,20Hz~20kHzbandwidth,1kHzsineat0dBFSlevel(ormax level) | |
| SNR | >90dB, 20Hz~20kHz bandwidth | |
| CrosstalkIsolation | >70dB,10kHzsineat0dBFSlevel (ormaxlevelbeforeclipping) | |
| Noise | -90dB | |
| AudioOutput | (1) StereobalancedL/R/Raudio | |
| AudioOutputConnector | (1)5-pinterminalblock | |
 |
