MP-DA24UHD-4K
Read this user manual carefully before using the product. Pictures are shown in this manual for reference only. Different models and specifications are subject to the real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance. The functions described in this version were updated till October, 2018. In the constant effort to improve the product, we reserve the right to make functions or parameters changes without notice or obligation. Please refer to the dealers for the latest details.

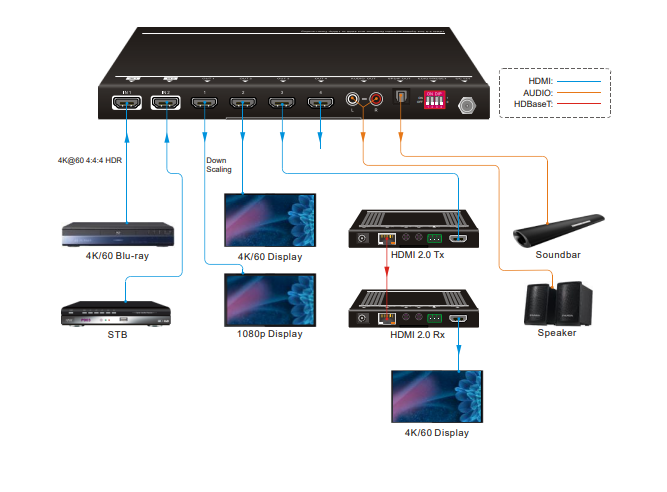

Features
- Supports HDMI 2.0 and video resolution up to 4K@60Hz 4:4:4.
- HDMI inputs support HDCP 2.2, and the outputs support HDCP1.4
- Fully compliant with the HDMI 2.0 and HDCP 2.2 specifications.
- Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080P output for compatibility with 1080P displays.
- 18Gbps high bandwidth
- Features RCA (L/R) jack and Toslink connector for audio de-embedded.
- Advanced EDID management: multiple presets and user-defined allowed.
- Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.
- Supports CEC control to turn on/off displays and adjust their volume.
- Provides LEDs to indicate the current operating status and to assist in troubleshooting and installation.
- Firmware upgrade by Micro-USB port.
Powered by Froala Editor
Specification
| Input | (2) HDMI |
| Input Connector | (2) Female type-A HDMI |
| HDMI Input Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| HDMI Standard | 2.0 |
| HDCP Version | 2.2 |
| CEC | Supported |
| Video Output | |
| Output | (4) HDMI |
| Output Connector | (4) Female type-A HDMI |
| HDMI Output Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| HDMI Standard | 2.0 |
| CEC | Supported |
| De-embedded Output | (1) AUDIO OUT (1) SPDIF OUT |
| Output Connector | (1) RCA (L/R) jack (1) Toslink connector |
| HDMI Audio Format | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through |
| Stereo Analog L/R Audio Format | PCM |
| Toslink Digital Audio Format | PCM, Dolby Digital, DTS, DTS-HD |
| Frequency Response | 20Hz ~ 20KHz, ±3dB |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal |
| THD+N | <0.05% (-80 dB), 20Hz ~ 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level) |
| SNR | >80dB, 20Hz ~ 20KHz bandwidth |
| Crosstalk Isolation | >70dB, 10KHz sine at 0dBFS level (or max level before clipping) |
| L-R Level Deviation | < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping) |
| Frequency Response Deviation | <± 0.5dB 20Hz ~ 20 KHz |
| Output Load Capability | 1K ohm and higher (supports 10x paralleled 10k ohm loads) |
| Stereo Channel Separation | >70dB@1kHz |
| Control Part | (5) Control buttons; (1) EDID 3-pin DIP switch; (1) EDID 4-pin DIP switch; (1) Micro-USB port |
| Bandwidth | 18Gbps |
| Operation Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humidity | 10%-90% |
| Power Supply | Input:100V~240V AC; Output: 12V DC 1A |
| Power Consumption | 12W(Max) |
| Dimension (W*H*D) | 232mm x 20mm x 100mm |
| Net Weight | About 660g |
