MP-BYOD

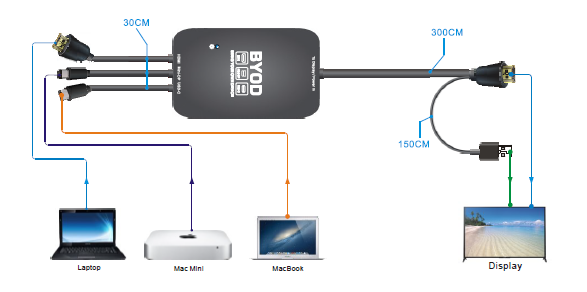

MP-BYOD is an HDMI 2.0 3x1 Multi-format Presentation Switcher converting AV signal from HDMI, Mini DP and USB-C inputs to HDMI output. The MP-BYOD is a green low energy consumption product which has a various application in different places, such as classroom, small meeting room, lecture hall, and etc.
- Supports HDMI, Mini DP and USB-C input signals to be converted to HDMI signals.
- Auto-detects the input signal, the last connected signal source will be switched to the output automatically.
- Starts to scan from HDMI to USB-C and switch the first detected source to output.
- Supports Mini DP and USB-C input video resolution up to 4K@60Hz 4:4:4.
- Supports HDMI input and output video resolutions up to 4K@60Hz 4:4:4 HDR and Dolby Vision.
- HDCP 2.2 compliant.
- Powered via USB-A from display end.
- LED for power indicating.
Powered by Froala Editor
| Input | |
| Connector Type | (1) Type-A HDMI, (1) Mini DP, (1) Type-C USB |
| HDMI Video Resolution | Up to 4K @60Hz 4:4:4, HDR |
| Mini DP Video Resolution | Up to 4K@60Hz 4:4:4 |
| USB-C Video Resolution | Up to 4K@60Hz 4:4:4 |
| HDMI Audio | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS HD® Master Audio™ pass through. |
| HDMI Version | 2.0 |
| DP Version | 1.2 |
| HDCP Version | HDCP 2.2 compliant |
| HDMI Mini DP USB-C Input Cable Length | 30cm |
| Output | |
| Connector Type | (1) Type-A HDMI, (1) Type A USB |
| HDMI Version | 2.0 |
| DP Version | 1.2 |
| HDCP Version | 2.2, Pass-through |
| Video Resolution | Up to 4K@60Hz 4:4:4, HDR |
| HDMI Output Cable Length | 300cm |
| USB-A Cable Length | 150cm |
| General | |
| Operation Temperature | -5 ~ +55°C |
| Storage Temperature | -25 ~ +70°C |
| Relative Humidity | 10% ~ 90% |
| Power Supply | Powered via USB A from display end. |
| Power Consumption | Max. 1.8w |
| Dimension (W*H*D) | 135mm x 83mm x 20mm |
| Net Weight | 370g (Including cables) |
