MPX1616-NT
Read this user manual carefully before using the product. Pictures are shown in this manual for reference only. Different models and specifications are subject to the real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance. The functions described in this version were updated till December, 2019. In our ongoing effort to improve the product, we reserve the right to make changes to functions or parameters without notice or obligation. Please refer to the dealers for the latest details.

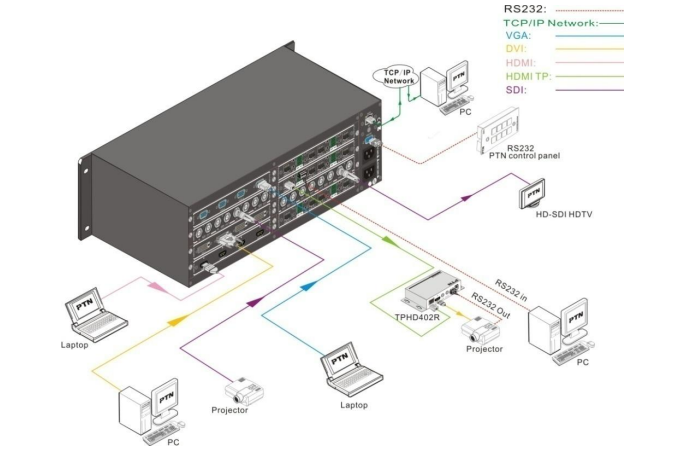

Features
- Modular chassis with configurable I/O slots, ranging from 4x4 to 16x16.
- Various I/O cards, including HDMI, HDBaseT, SD/HD/3G-SDI, DV, I, and VGA cards (Compatible with YUV, YC & CVBS), to configure any matrix
- Truly cross-point switching, any input to any output, regardlessof signal format.
- Supports HDMI1.4 and 1080P 3D
- Integrated HDBaseT technology.
- Controllable via button, RS232 & optional TCP/IP, also compatible with 3rd parties control.
- HDCP compliant.
- LCD display.
Powered by Froala Editor
Specification
| Serial Control Port | RS-232, 9- female D connector |
| Configuration | 2 = TX, 3 = RX, 5 = GND |
| Installation | Rack Mountable |
| Front Panel Control | Buttons |
| Option | TCP/IP control |
| Power Supply | 100VAC ~ 240VAC, 50/60Hz |
| Power Consumption | 31W (Max, no load) |
| Operation Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humility | 10%-90% |
| Dimension (W*H*D) | 483mm x 133mm x 320mm (3U high) |
| Net Weight | About 5KG (No signal card) |
| Input Connector | (4) 3-pin pluggable terminal block |
