MP-IP-500
Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to the real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance. The functions described in this version were updated till July 13, 2023. In the constant effort to improve the product, we reserve the right to make functions or parameters changes without notice or obligation. Please refer to the dealers for the latest details.
Features
- Streams 4K video with 1 frame latency
- Supports HDMI video resolution up to 4K@60Hz 4:4:4 8-bit
- Transports RS232 and IR signals to any units

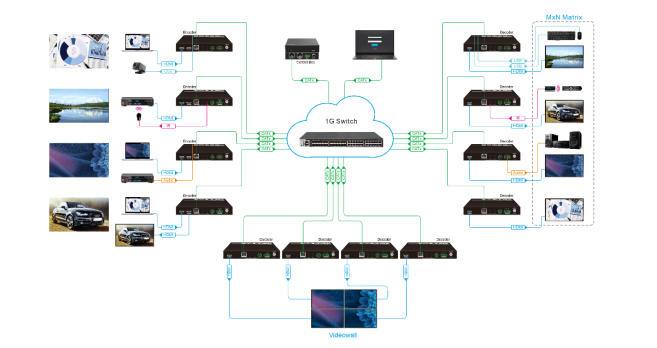

- Supports Video Wall mode up to 9x9 screens
- Selectable output resolutions up to 4K scaling ability
- An additional 3-pin terminal block for audio embedding
- IP control box for TCP/IP control
Powered by Froala Editor
Specification
| Video Input | (1) HDMI |
| Video Input Connector | (1) Type-A female HDMI |
| HDMI Input Resolution | Up to 4K@60Hz 4:4:4 8bit |
| Audio Input | (1) Analog Audio In |
| Audio Input Connector | (1) 3-Pin terminal block |
| Output | |
| Video Output | (1) IP Stream (1) HDMI |
| Video Output Connector | (1) RJ45, (1) Type-A female HDMI |
| HDMI Output Resolution | Up to 4K@60Hz 4:4:4 8bit |
| Audio Output | (1) IP Stream (1) De-embedding Output |
| Audio Output Connector | (1) RJ45, (1) 5-Pin terminal block |
| General | |
| Control | (1) IR IN, (1) IR OUT, (1) RS232, (1) host |
| Control Connector | (2) 3.5mm jack, (1) 3-pin terminal block, (1) USB-B |
| Operation Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humidity | 10%-90% |
| Power Consumption | 7.8W (Max) |
| Dimension (W*H*D) | 180 x 142.7 x 25 mm |
