MP-3113-BI
MP-3113-BI is an ultra thin bidirectional 3x1/1x3 HDMI2.0 switcher with 4 HDMI ports. The switcher supports HDMI resolutions up to 4K@60Hz 4:4:4.
- Supports HDMI2.0 4k@60Hz 4:4:4.
- HDCP2.2 compliant.

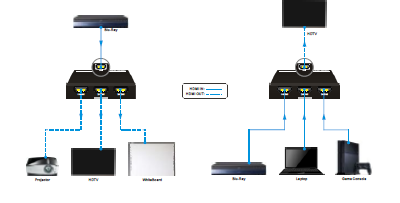

- Supports bi directional switching.
- Supports HDR.
- Supports Hot Plug detection.
- No need of external power supply.
- Supports smart EDID management.
| Input & output | (4) HDMI |
| Connector | (1) 19 pin type A female HDMI |
| General | |
| Resolution | Up to 4Kx2K@60Hz 4:4:4 |
| HDMI Standard | HDMI2.0 |
| HDCP Compliance | HDCP2.2 pass through |
| EDID Management | Built in EDID |
| Power Consumption | 4W (Max) |
| Operation Temperature | -10~ 40°C |
| Storage Temperature | -15~55°C |
| Relative Humility | 10%-90% |
| Dimensions (W*H*D) | 80mm x 16mm x 55 mm |
| Net Weight | 131g |
