MP-SC-6E
MP-SC-6E is a compact 6x1 mini unit with 6 video inputs (4 HDMI, 2 VGA), 2 auxiliary audio inputs (switched following VGA ), 1 HDMI output, and 3 audio outputs (1 dual mono analog audio, 1 3.5mm stereo audio, 1 optical audio). It switches the VGA or HDMI/DVI input signal to the HDMI output. Besides, the unit up-scales VGA to HDMI output and supports resolution adjustment (6 types in total). It bypasses HDMI and provides comprehensive resolution capacities up to 4K& 1080p 3D. The unit also supports RS232 & IR control and EDID management.

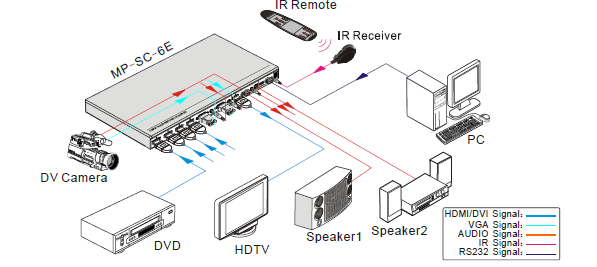

- Contr ol via Front panel buttons , RS232 commands and IR Remote
- Switch select 6 input s ource to HDMI output
- Scale scale VGA to HDMI output, Output resolutions selectable to assure preferred output, and supports various output resolutions, such as 1920 x 1200 1920 x 1080 1360 x 768 1280 x 800 1024 x 768 1280 x 720
- Support HDMI 1.4 , 4Kx2K&1080P 3D compliance with HDCP1.4
- Transmit 4Kx2K signal up to 15m.
- Support EDID management
- Two input switching modes: auto switching or manual switching
- Intuitive indicator for power connect states & source selection & output resolution selection
- Support audio video output man a gement via OUTPUT BLACK button.
- Support online software upgrading
- Compact design for easy operation
- Support power off memory
- Support hot plug
Powered by Froala Editor
| Video Input | Video Output | ||
| Input | 4 x HDMI, 2 x VGA | Output | 1 x HDMI |
| Input Connector | 4 x female HDMI (Type A) 2 x female VGA (15pin) | Output connector | 1 x Female HDMI |
| Video Signal | HDMI/DVI,VGA | Video Signal | HDMI |
| Resolution | HDMI: up to 4Kx2K; VGA: output resolution selectable | ||
| Standard | Compliant with VGA&DVI HDMI1. 4, HDCP 1.4 | ||
| Audio Input | Audio Output | ||
| Input | 2 x stereo audio for VGA | Output | 1 x Dual Mono analog audio 1 x stereo audio 1 x optical audio |
| Input Connector | 1 x 3.5mm jack | Output Connector | 1 x 3 pin pluggable terminal block (3.81mm) 1 x 3.5mm jack 1 x SPF fiber connector |
| Control Parts | |||
| Control Ports | RS232, IR remote | ||
| Pin configuration | 2 = TX, 3 = RX, 5 = GND | ||
| Panel Control | Front Panel Button | ||
| General | |||
| Power Supply | DC 5V 3 A | ||
| Power Consumption | 3.8 (Max) | ||
| Dimension (W*H*D) | W34 7 x H28 x D110 mm | ||
| Weight | 0.63Kg | ||
| Temperature | 0℃ ~ 50℃ | ||
| Reference Humidity | 10% ~ 90% | ||
| Transmit Distance | 4Kx2K≤15 m | ||
