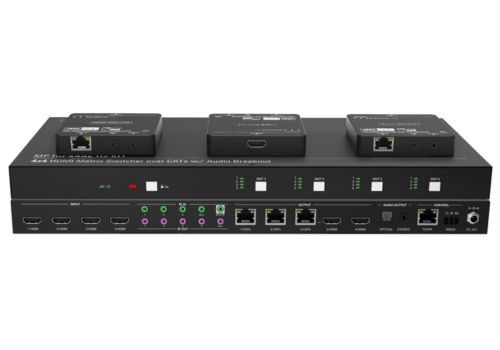

MP-HD-44AE-H2 KIT

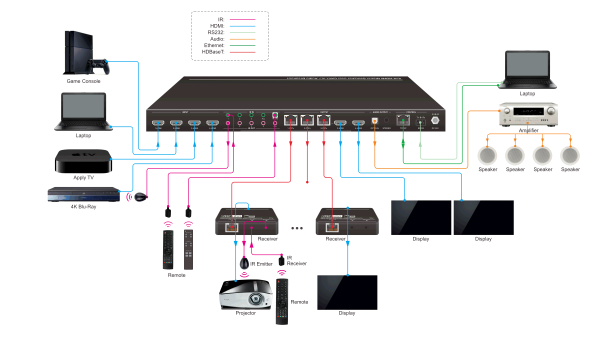

MP-HD-44AE-H2 KIT is a professional 4x4 HDMI V2.0 Matrix Switcher with audio breakout. It includes 4 HDMI inputs, 1 HDMI output, and 3 CATx extension outputs with an HDMI loop out. The HDMI signal is extended up to 70m over a single CATx cable. All the HDMI outputs support the down-scaling function. It also features SPDIF and analog audio outputs for audio breakout.
Features
- 4x4 HDMI V2.0 Matrix Switcher.
- Supports 4K@60 4:4:4, HDR, HDCP2.2.
- 4K/ 1080p HDMI signal extension up to 70m.
- Audio out can be de-embedded from any outputs.
- HDMI outputs support 4K to 1080p down-scaling.
- Controllable by front panel, IR, RS232 and TCP/IP.
- CATx outputs support 12V PoC power for receivers.
- Supports bi-directional IR pass-through.
Powered by Froala Editor
Specification
| Video Input | (4) HDMI |
| Input Connector | (4) Type-A female HDMI |
| HDMI Input Resolution | Up to 4K@60Hz 4:4:4, HDR |
| Video Output | (3) CATx, (2) HDMI |
| Output Connector | (3) RJ45, (2) Type-A female HDMI |
| HDMI Output Resolution | Up to 4K@60Hz 4:4:4, HDR10 |
| CATx Output distance | Up to 70m |
| HDCP Version | Up to 2.2 |
| HDMI Audio Signal | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS: X™, and DTS-HD® Master Audio™ pass-through. |
| Output | (1) Digital SPDIF audio, (1) Analog stereo audio |
