MPTP-T100RPT

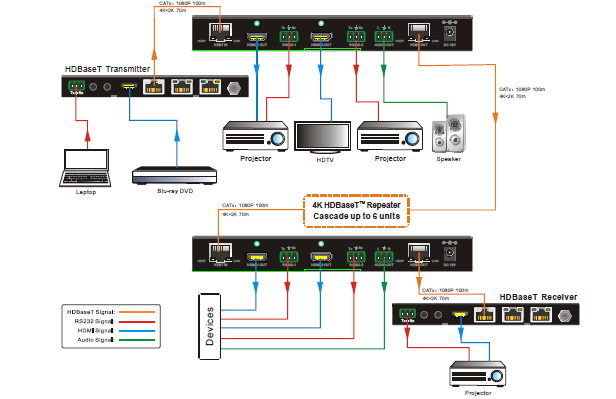

MPTP-T100RPT is designed to extend the signal transmission distance of Matrix system and Extender sets by repeating the HDBaseT signals up to 4K@70m & 1080p@100m over CAT5e/6/7 cable for each unit . User can connect up to 6 repeaters for each output by daisy chain connection. For instance , 4K HDBaseT 8x8 Matrix Switcher which has 8 HDBT outputs, can connect with up to 48 repeaters in the system.

  • Features HDBT input HDBT output, Audio output and two HDMI outputs.
  • With two RS232 ports, supports point to point, one to many and one to all RS232 control.
  • The input & output video resolution can up to 4Kx2K@ 60Hz 4:2:0.
  • Supports all know n HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS HD Master Audio.
  • HDBT ports with distance up to 328ft. (100m) at 1080p and 230ft. (70m) at 4Kx2K over CAT5e/6/7.
  • HDCP2.2 compliant.
  • Supports cascading, at least 6 units can be looped within the same operation system.
  • ID PRESET switcher is designed for assigning the Unit ID.
  • Supports input signal de-embedding.
Input & Output
Input Port HDBT IN
Input Connector (1) RJ45 Receptacle
Input Video Signal The max resolution is up to 4Kx2K/60Hz 4:2:0, compatible with HDCP2.2
Output Port (2) HDMI OUT; (1) HDBT OUT; (1) AUDIO OUT
Output Connector (2) HDMI Type A Receptacle;
(1) RJ45 Receptacle;
(1) 3 Pin phoenix connector
Output Video Signal The max resolution is up to 4Kx2K/60Hz 4:2:0, compatible with HDCP1.4
Embedded Audio Signal Support s PCM/Dobly/DTS
Output Analog Audio Signal Supports PCM
Analog Audio Frequency
Response
20 Hz to 20 kHz, ±3 dB
Transmission Mode HDBaseT
Control
Control Ports (2) RS232
Connector Two (2) 3 Pin phoenix connector
Baud Rate 9600
General
Power Supply Input: 100VAC~240VAC, 50/60Hz
Output: 12VDC, 2A
Maximum Power Consumption 14W
Work Temperature -10 ~ +55℃
Humidity 10% ~ 90%
Dimension (W*H*D) 200mm x 25mm x 100mm
Net Weight 357g
