MP-HUDE2-4K

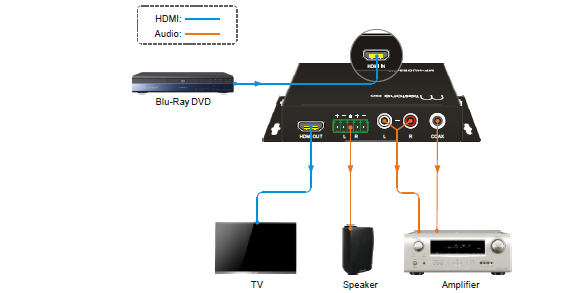

MP-HUDE2-4K is a small size HDMI2.0 audio de-embedder with 1 HDMI input, 1 HDMI output, and three kinds of audio outputs. It is designed to extract audio from 4K HDMI signal via stereo balanced L/R audio, analog RCA, and coaxial digital audio output ports. It supports 4K@60Hz/4:4:4 HDR, EDID & CEC pass through, and the transmission rate is up to 18Gbps. Moreover, there are three audio modes can be chosen in order to be compatible with various audio processing device.
- Supports stereo balanced L/R audio, analog RCA, and coaxial digital audio output ports.
- Supports three audio modes PASS, BITSTREAM, and PCM.
- HDMI input supports HDCP2.2, and the output supports HDCP1.4.
- Supports HDMI2.0 4K@60Hz/4:4:4 HDR, EDID & CEC pass through.
- The transmission rate is up to 18Gbps.
- Coax digital audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
- Supports HDMI High Bit Rate(HBR) audio pass through
Powered by Froala Editor
| Video | |
| Input | (1) HDMI |
| Input connector | (1) 19-pin type-A female HDMI 2.0, HDCP2.2 |
| Output | (1) HDMI |
| Output connector | (1) 19-pin type-A female HDMI 2.0, HDCP1.4 |
| Audio | |
| Output | (1) Stereo balanced audio L/R; (1) Analog audio L+R ; (1) COAX |
| Output connector | (1) 5-Pin phoenix connector; (1) RCA ; (1) Coaxial audio connector |
| Stereo analog audio format | PCM |
| Coax digital audio format | LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH |
| General | |
| Max data rate | 18Gbit/s |
| Max resolution | 4Kx2K60Hz 4:4:4 |
| Work Temperature | -10~ 55℃ |
| Reference humidity | 10% ~ 90% |
| Power consumption | 3 W (Max) |
| Power supply | Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC 1A |
| Dimension (W*H*D) | 129mm x 21.5 mm x77 mm |
| Net weight | 244g |
