MP-HD-88A-E KIT

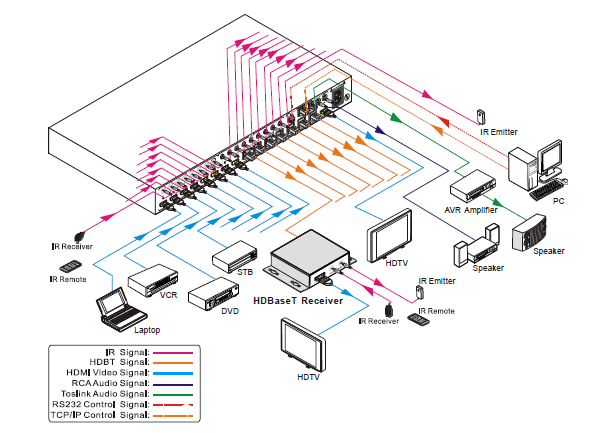

MP-HD-88A-E KIT is a professional 4K HDBaseT Home Distribution Hub Kit, which consists of a 4K HDBaseT Matrix Switcher, 7 HDBas eT Receivers and accessories. It is a professional 8x8 HDBaseT Matrix Switcher that consist of the following inputs and outputs 8 HDMI IN ( 4kx2K@60Hz signal at max) max), 7 IR IN , 1 IR EYE, 8 IR OUT, 1 IR ALL, 7 HDBaseT OUT, 1 HDMI OUT, 1 SPDIF OUT, 1 L&R RCA OUT, and TCP/IP, RS232 control port via phoenix connector. The receiver is an HDBaseT Receiver that consists of the following inputs and outputs, 1 HDBaseT IN, 1 IR IN, 1 IR OUT and HDMI OUT. The receiver is powered directly by the Matrix Switcher. All HDMI inputs can be selected by either the front panel buttons, IR, RS 232 or GUI. The selected source is delivered to HDBaseT zoned outputs 1~ 7 & HDMI. The Matrix Switcher is capable of delivering 4K signals up to 40m, 1080p up to 70m and powering the receivers via a single CAT5e cable. It supports EDID management and is HDCP 2.2, 1.4 compliant. Audio sources can be selected via RS232 commands and TCP/IP at the Matrix Switcher or by 3rd Party control.
- HDBaseT Matrix Switcher that features 7 HDBaseT outputs and 1 HDMI output
- Supports HDCP 2.2, and is backwards compatible with previous version of HDCP and HDMI
- Transmits 4Kx2K @ 60Hz 4:2:0 up to 26 ft. (8m) via HDMI port and 131 ft. (40m) via HDBaseT port
- 7 HDBaseT outputs with distances up to 230 ft. (70m) at 1080p and 131 ft. (40m) at 4Kx2K on a single Cat5e/6 cable
- HDBaseT Receivers are powered by t he matrix using PoC technology
- LED indicators show real time switching status
- Controllable via front panel, RS232, IR and TCP/IP
- Built in GUI for TCP/IP control and setup
- Powerful EDID management
- Support CEC to control far end display devices via RS232 commands
- Features Micro USB port for firmware up grades
- Easy installation with rackEasy installation with rack--mounting design, mounting hardware includedmounting design, mounting hardware included
- Power Power Supply:Supply: Matrix Unit, AC100V~ 240V; Receivers, PoCMatrix Unit, AC100V~ 240V; Receivers, PoC.
Powered by Froala Editor
4K HDBaseT Matrix Switcher
| Video Input | |
| Input | 8 x HDMI |
| Input Connector | Female HDMI |
| Input Level | T.M.D.S. 2.9V~3.3V |
| Input Impedance | 100Ω (Differential) |
| HDMI Standard | Support 4K@60 4:2:0 & HDCP2.2 and is backward compatible with all previous standards. |
| Video Output | |
| Output | 1 x HDMI 7 x HDBaseT |
| Output Connector | Female HDMI Female RJ45(with LED indicators) |
| Output Level | T.M.D.S. 2.9V~3.3V |
| Output Impedance | 100Ω (Differential |
| HDMI Standard | Support 4K@60 4:2:0 & HDCP1.4 and is backward compatible with all previous standards. |
| Video General | |
| Video Signal | HDMI (or DVI-D) |
| Transmission Distance | 1080P@60Hz ≤70m 4Kx2K@60Hz ≤40m |
| Resolution Range | Up to 4Kx2K@60Hz |
| EDID Management | In-built EDID data and manual EDID management |
| Gain | 0dB |
| Bandwidth | 10.2Gbit/s |
| Switching Speed | 200ns (Max.) |
| Audio General | |
| Output Signal | Stereo audio Digital audio |
| Analog Audio Output | Support PCM |
| Digital Audio Output | Supports PCM, Dolby, DTS, DTS-HD |
| Frequency Response | 20Hz~20KHz |
| Output Connector | 1 L&R(RCA) 1 SPDIF |
| Control Parts | |
| Control Ports | 8 x IR OUT 1 x IR ALL OUT 7 x IR IN 1 x IR EYE 1 x TCP/IP (female RJ45) 1 x RS232 (3-pin pluggable terminal block) |
| Panel Control | Front panel buttons |
| RS232 Control | 3-pin pluggable terminal block |
| IR | Extended IR receiver |
| TCP/IP Control | Web-based GUI |
| General | |
| Power Supply | AC100-240V~, 50/60Hz |
| Power Consumption | 93W (Max) |
| Temperature | 0 ~ +50℃ |
| Reference Humidity | 10% ~ 90% |
| Dimension(W*H*D) | 436.4mm x 44.0 mm x 3 00 .0 mm |
| Net Weight | 2.9Kg |
HDBaseT Receiver
| Input & Output | |
| Input | 1 x HDBaseT |
| Input Connector | Female RJ45(with LED indicators) |
| Output | 1 x HDMI |
| Output Connector | Female HDMI |
| Control | 1 IR IN 1 IR OUT |
| Control Connector | 3.5mm mini jacks |
| General | |
| Resolution Range | Up to 4K×2K@ 6 0Hz |
| Transmission Mode | HDBaseT |
| Transmission Distance | 1080P@60Hz ≤70m 4Kx2K@60Hz ≤40m |
| Bandwidth | 10.2Gbps |
| HDMI Standard | Support HDMI1.4 and HDCP1.4 |
| Temperature | 0 ~ +50℃ |
| Humidity | 10% ~ 90% |
| Power Supply | Powered by 4K HDBaseT Matrix Switcher. |
| Dimension (W*H*D) | 62mm x 24mm x 121mm |
| Net Weight | 280g |
