MPTP-T70HDV

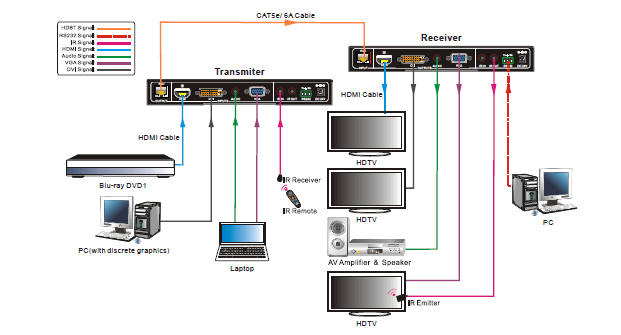

MPTP-T70HDV is an HDBaseT Transceiver Set which contains a Transmitter and a Receiver. It uses HDBaseT technology to deliver HDMI/DVI/VGA signal, and the max transmission is up to 70m. Moreover, bi-directional RS232 control, RS232 pass-through, IR control and PoC are supported by this product. MPTP-T70HDV has a good application in various occasions, such as computer realm, monitoring, big screen displaying , meeting room, education and bank & securities institution etc.
- HDMI/DVI/VGA output resolution up to 1920x1200@60HZ
- Support bi-directional PoC
- Maximum transmission distance is up to 70m for 1080p.
- In-built scaler function, support scal ing HDMI/ DV I/VGA signals to match the native resolution of the displays
- Provide external audio input for DVI video signal
- HDMI/DVI/VGA input signal can be switched automatically.
- Supports firmware upgrading via USB.
- Control methods: front panel buttons of transmitter , bi-directional RS232 control.
- LED indicators show work status
| MPTP-T70HDVT | MPTP-T70HDVR | |
| Input Ports | ||
| Input Signal | 1× HDMI ; 1× DVI; 1× VGA; 1× AUDIO |
1× HDBT |
| Input Connector | Female HDMI (Type-A); Female DVI-I; Female VGA (DB-15,blue); 3.5mm stereo jack |
RJ-45 |
| Output Ports | ||
| Output | 1 x HDBT | 1× HDMI 1× DVI; 1× VGA; 1× AUDIO |
| Output Connector | RJ-45 | Female HDMI (Type-A); Female DVI-I; Female VGA (DB-15,blue); 3.5mm stereo jack |
| Control Ports | ||
| Control Ports | 1× IR IN; 1×IR OUT; 1×RS232 |
1×IR IN; 1×IR OUT; 1×RS232 |
| Control Connector | 3.5mm mini jack; 3.5mm mini jack; 3-pin RS232 socket |
3.5mm mini jack; 3.5mm mini jack; 3-pin RS232 socket |
| General | ||
| Transmission Mode | HDBaseT | |
| Transmission Distance | 1080P≤7 0M (PoC) | |
| Resolution | 16:9 |
1920x1080, 1600x900, 1366x768, 1280x720, |
| 16:10 | 1920x1200, 1680x1050, 1440x900, 1360x768, 1280x800 | |
| 4:3 | 1600x1200, 1400x1050, 1280x1204, 1024x768, 800x600, 640x480 | |
| Upscaling Resolution | 1920x1200, 1920x1080, 1600x1200, 1360x768, 1280x800, 1280x720, 1024x768 | |
| Audio Format | HDMI embedded audio: PCM, PCM 2Ch Analog audio: PCM，PCM 2Ch |
|
| VGA Signal Type | Input：support VGA、CVBS、YPbPr Output：support VGA、YPbPr |
|
| Bandwidth | 10.2Gbps | |
| Standard | HDMI1.4, HDCP1 .2 | |
| Impedance | 75Ω | |
| Operating Temperature | 0 ~ 50℃ | |
| Storage Temperature | -20 ~ 70℃ | |
| Humidity | 10% ~ 90% | |
| Power Supply | Input: 100VAC~240VAC, 50/60Hz Output: DC 24V,1.25A | |
| Power Consumption | ≤7W | ≤13W |
| Dimension(mm) | W220xH30x D100 | W220xH30x D100 |
| Weight | 426g | 426g |
