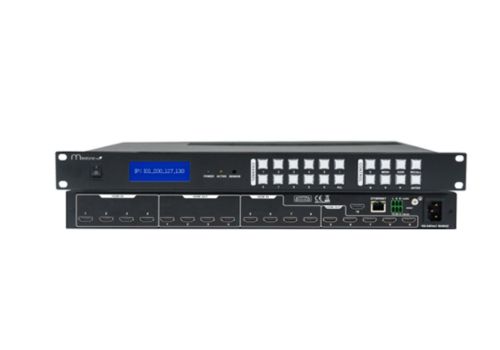

MP-UHD810-VW
Safety instructions. For your safe and correct use of equipment, we use a lot of symbols on the equipment and in the manuals, demonstrating the risk of bodily harm or possible damage to property for the user or others. Indications and their meanings are as follows. Please make sure to correctly understand these instructions before reading the manual.
Property

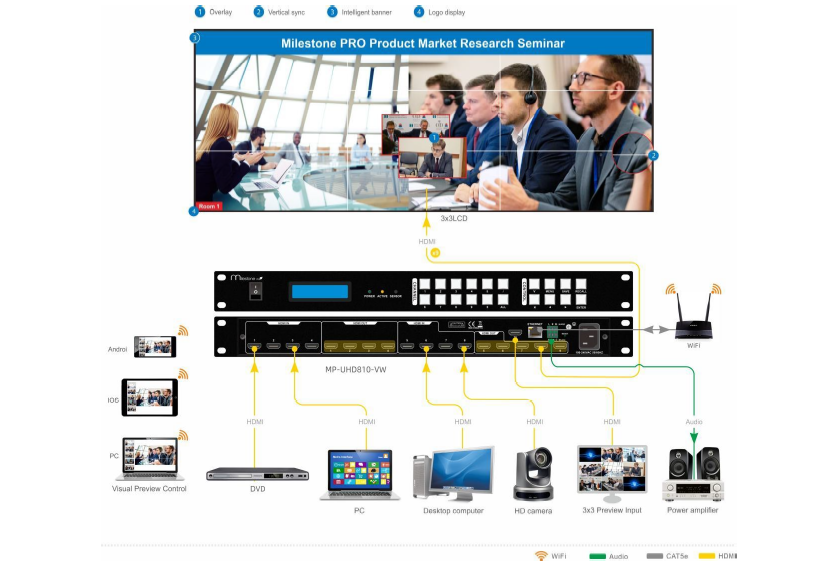

- Features 8 HDMI inputs and 9 HDMI outputs, and 1 HDMI preview output for 9-split signal monitoring, along with analog audio output.
- Supports up to 4K@30Hz 4:4:4 input and output, compatible with HDMI 1.4 and HDCP 1.4.
- Offers flexible layout options, including windowing, roaming, scaling, seamless switching, and layer overlay.
- Each interface supports up to 8 layers, and the entire video wall supports up to 16 layers.
- Built-in IP-based visual preview enables real-time monitoring of input signals and displays the current video wall status.
- Supports three display modes: Matrix, Video Wall, and Multi-View, catering to diverse application needs.
- Multiple control methods: front panel with LCD and buttons, RS232, TCP/IP, web interface, and PC software control.
Features
- 8 HDMI inputs and 9 HDMI outputs, and 1 HDMI preview output for 9-split signal monitoring, along with analog audio output.
- Input/output supports up to 4K@30Hz, 4:4:4, compliant with HDMI 1.4 and HDCP 1.4.
- Visual management with built-in preview for real-time monitoring and video wall status feedback.
- Flexible layout: customizable windows, roaming, scaling, seamless switching, and layer overlay.
- Layer management: up to 8 layers per output, max 16 layers across the wall (Inputs 1–8 share 16 layers; Output 9 shares 8 layers with Inputs 5–8).
- EDID management: selectable built-in EDID, reads and applies display EDID, supports updates.
- Image cropping allows for partial display of the input image.
- Logo overlay: supports custom logos with adjustable language, font, and size.
- Built-in test patterns: 11 professional signals for system diagnostics.
Powered by Froala Editor
| Input | 8 HDMI |
| Output | 10 HDMI, 1 Analog Audio |
| Video Protocol | HDMI 1.4, HDCP 1.4 |
| Max Resolution | 4096 x 2160@30 Hz |
| HDMI Interface | Type A, 19-pin female connector |
| Serial Interface | RS-232 |
| Input Cable Length | 10m |
| Output Cable Length | 10m |
| Impedance | 100±15 Ω |
| RJ45 Control Protocol | TCP/IP Protocol |
| Ethernet Speed | Adaptive 10M/100M/1000M |
| Storage Environment | Temperature: -20°C ~ +70°C, Humidity: 10%~90% |
| Operating Environment | Temperature: 0°C ~ +50°C, Humidity: 10%~90% |
| Power Supply | AC100~240V 50/60Hz |
| Maximum Power | 65W |
