MP-SU21T-KVM

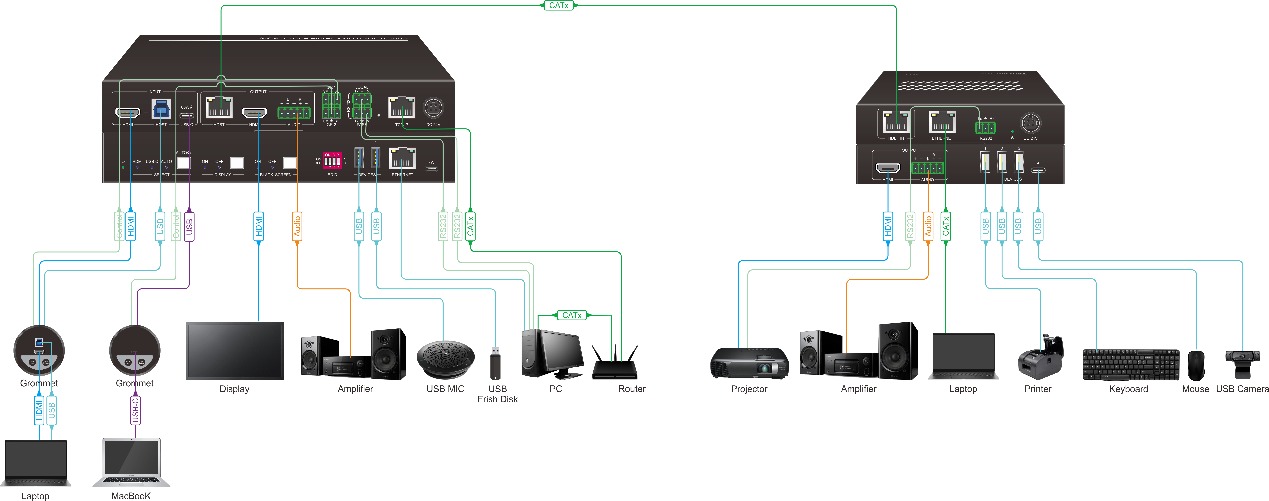

MP-SU21T-KVM is an 18Gbps switcher kit. It supports up to 4K/60/4:4:4, HDR10 and Dolby Vision, HDCP 2.2. It also supports uncompressed transmission of 18Gbps signals with a distance of up to 100m. At the same time, it can be connected to KVM equipment, which is very suitable for equipment connection and signal transmission in conference rooms. The switcher kit also supports RS232 & CEC control and bidirectional 48V PoC.
- HDMI 2.0, highest support 4K@60HZ 4:4:4, HDR10 and Dolby Vision, HDCP 2.2
- 1 x HDMI input, 1 x USB-B host, 1 x USB-C input, 1 x HDMI output and 1 x HDBaseT output
- HDBT 3.0, support 100m transmission and bidirectional 48V PoC
- Support RS232 control and CEC control
- USB-C input support 60W external charging
- Auto switch 5V or TMDS detection
- Support Dry Contact control
Powered by Froala Editor
| Transmitter | Receiver | |
| Video | ||
| Input | 1 x HDMI IN, 1 x USB-C IN | 1 x HDBT IN |
| Input Connector | 1 x Type-A female HDMI 1 x Type-C USB | 1 x RJ45 |
| Input Resolution | HDMI: Up to 4K@60Hz 4:4:4 HDR10, Dolby Vision USB-C: Up to 4K@60Hz 4:4:4 | Up to 4K@60Hz 4:2:0 |
| Output | 1 x HDMI OUT, 1 x HDBT OUT | 1 x HDMI |
| Output Connector | 2 x Type-A female HDMI | 1 x Type-A female HDMI |
| Output Resolution | HDMI: Up to 4K@60Hz 4:4:4 HDR10, Dolby Vision HDBT: Up to 4K@60Hz 4:2:0 | Up to 4K@60Hz 4:4:4 HDR10, Dolby Vision |
| HDMI Standard | Up to HDMI 2.0 | Up to HDMI 2.0 |
| HDCP Version | Up to HDCP2.2 | Up to HDCP 2.2 |
| Audio | ||
| HDMI Embedded Audio Format | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through. | |
| Audio Output Connector | 1 x 5-pin terminal block | 1 x 5-pin terminal block |
| Frequency Response | 20Hz–20KHz, ±3dB | |
| Max Output Level | 0.88 Vrms ± 0.5 dB. 2 V = 16 dB headroom above -10 dBV (316 mV) nominal consumer line level signal SPDIF: ±0.05dBFS | |
| THD+N | < 0.05% (-80 dB), 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0 dBFS level (or max level) | |
| SNR | > 80dB, 20Hz-20 kHz bandwidth SPDIF: > 90dB, 20Hz-20 kHz bandwidth | |
| Crosstalk Isolation | -80 dB, 10 kHz sine at 0 dBFS level (or max level before clipping) | |
| L-R Level Deviation | < 0.3 dB, 1 kHz sine at 0 dBFS level (or max level before clipping) | |
| Output Load Capability | 1k ohm and higher (supports 10x paralleled 10k ohm loads) | |
| Noise Level | >70dB @ 1 kHz | |
| Control | ||
| Control port | 1 x EDID switch, 2 x DEVICES, 1 x ETHERNET, 1 x FW, 1 x HOST, 2 x GR, 2 x RS232 x 1 TCP/IP | 4 x DEVICE, 1 x ETHERNET, 1 x RS232 |
| Control Connector | 1 x 4-pin DIP switch, 2 x USB Type-A, 1 x RJ45, 1 x Micro-USB, 1 x USB Type-B, 2 x 3-pin terminal block, 2 x 3-pin terminal block, (1) RJ45 | 3 x USB Type-A, 1 x USB Type-C, 1 x RJ45, 1 x 3-pin terminal block |
| General | ||
| Operation Temperature | -5 ~ +55℃ | |
| Storage Temperature | -25 ~ +70℃ | |
| Relative Humidity | 10% ~ 90% | |
| External Power Supply | Input: AC 100~240V, 50/60Hz; Output: 24V DC 5A. | |
| Power Consumption | 76.5W (Max) | |
| USB-C Power Charging | 60W(Max) | |
| Dimension (W*H*D) | 265W x 150D x 32H mm | 173W x 95D x 24.5H mm |
| Net Weight | 1020g | 410g |
