MPTP-TU100S-3.0h

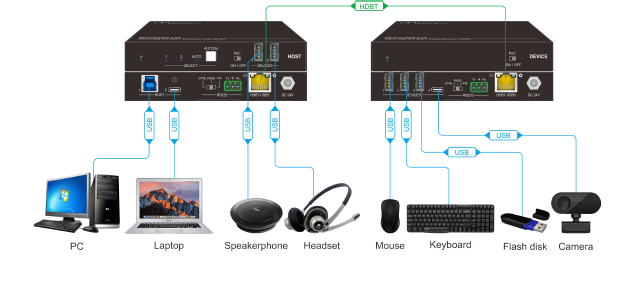

Thanks for choosing the 100m USB 3.2 Gen1 extender. The extender is designed to transmit a USB signal up to 100m. MPTP-TU100S-3.0H is the host port of the extender, which contains one Type-B and one Type-C for PC or laptop connections. It also has two local USB-A ports with a 5V500mA power supply for speakerphone and headset. The extender also supports bi-directional 24V PoC power.
Features
- 2x1USB3.2Gen1switcher
- Support extending the USB signal up to 100m
- Support RS232 passthrough/control/upgrade
- Auto/manual switching mode
- Bi-directional 24V PoC power supply
Powered by Froala Editor
| HostConnector | (1)Type-BUSB(1)Type-CUSB |
| DevicesConnector | (2)Type-AUSB |
| DevicesPower | 5V500mAtotal |
| USBVersion | USB3.2Gen1 |
| Control | (1)Button,(1)RS232,(1)DIPswitch |
| ControlConnector | (1)WhiteButton,(1)3-pinterminalblock,(1)2-pinDIPswitch |
| Transmitdistance | Upto100mwithCAT6Acable (Thecurrentversiononlyreachesthe70mextension) |
| DataRate | 5Gbps |
| OperationTemperature | -10℃~+55℃ |
| StorageTemperature | -25℃~+70℃ |
