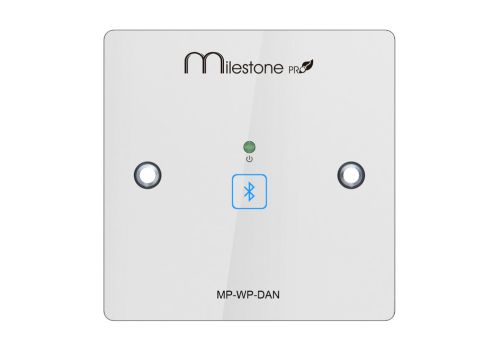

MP-WP-DAN
Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to the real product. This manual is only for operation instructions. Please contact the local distributor for maintenance assistance. The functions described in this version were updated till October 2025. In the constant effort the product, we reserve the right to make functions or parameter changes without notice or obligation. Please refer to the dealers for the latest details.
Features
- Class 2, communication distance at least 10m.
- Support one-touch pairing
- Support PoE power supply from the Ethernet switch.
- Controllable via Dante Controller.
Powered by Froala Editor
Specification
| Input | Bluetooth | |
| Output | Dante | |
| Frequency Response | 20Hz-20kHz ±3dB | |
| THD+N | <0.05% @1kHz | |
| SNR | >105dB | |
| Sample Rate | 44.1/48kHz | |
| Bit Depth | 24bit | |
| Protoco | A2DP/HFP/AES67 | |
| Power Supply | PoE | |
| Operation Temperature | 5℃ ~ +55℃ | |
| Storage Temperature | 20℃ ~ +70℃ | |
| Relative Humility | 10% ~ 90% | |
| Dimension (W*H*D) | 69.85mm x 114.3mmx 34.5mm | |
|
