MPTP-T70SC-H2
MPTP-T70SC-H2 HDMI is a 2.0 Extender, which consists of a transmitter and a receiver. It can extend 4K video to distance up to 131 feet (40 meters)and 1080P video to distances up to 230 feet (70 meters) over a single CATx cable. It supports audio de-embedded and ARC. It also supports bidirectional IR and RS232 pass through to control source or display device remotely. PoC feature allows the transmitter and the receiver can be powered from each other and only one power adapter is needed in system. Besides passing EDID information from the display, there are multiple built in EDID settings can be selected by the 4 pin DIP switch on the front panel of transmitter Moreover, the extender supports convenient firmware upgrade through Micro USB port.
Supports HDMI 2.0 and the HDMI video resolution up to 4K@60Hz 4:4:4 HDR
HDMI input support s HDCP 2.2 and the output support HDCP Active or HDCP Passive mode
Extends 4K signals to distances up to 131 feet (40 meters) and 1080P signals to distances up to 230 feet (70 meters) over a single CATx cable.
- Supports video resolution up scaling, the 1080P input can be automatically upgraded to 4K output.
- SPDIF out on receiver for source audio de embedding.
- 18Gbps high bandwidth.
- Advanced EDID management: multiple bui lt in EDID settings can be selected
- Test patt ern provides a built in 4K/1080P image for troubleshooting.
- Bidirectional IR, RS232 and 24V PoC.
- Supports ARC.
- Supports CEC pass through
- Provides LEDs to indicate the current operating status.
- Firmware upgrade by Micro USB port.
Powered by Froala Editor

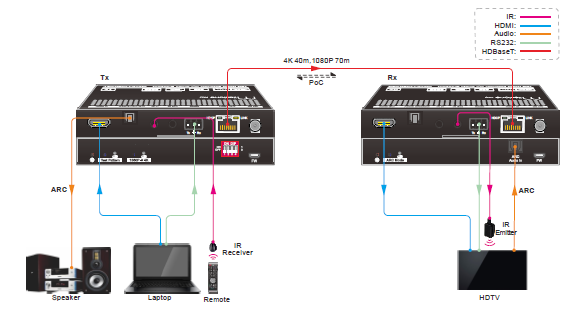

| Transmitter | Receiver | |
| Video | ||
| Input | (1) HDMI | (1) HDBT |
| Input Connector | (1) Type-A female HDMI | (1) RJ45 |
| Input Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit HDR10 | Up to 4Kx2K@60Hz 4:2:0 |
| Output | (1) HDBT Out | (1) HDMI |
| Output Connector | (1) RJ45 | (1) Type-A female HDMI |
| Output Resolution | Up to 4Kx2K@60Hz 4:2:0 | Up to 4Kx2K@60Hz 4:4:4 8bit HDR10 |
| Audio | ||
| Input | - | (1) ARC Audio In |
| Input Connector | - | (1) Toslink Connector |
| Output | (1) ARC Audio Out | (1) Audio Breakout |
| Output Connector | (1) Toslink c onnector | (1) Toslink connector |
| Audio Format | Supports PCM, Dolby Digital, Dolby True HD, DTS and DTS HD. | |
| Frequency Response | 20Hz – 20KHz, ±3dB | |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level sign | |
| THD+N | < 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level) | |
| SNR | > 85dB, 20Hz-20 kHz bandwidth | |
| Crosstalk Isolation | > 70dB, 10KHz sine at 0dBFS level (or max level before clipping) | |
| L-R Level Deviation | < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping) | |
| Frequency Response Deviation | < ± 0.5dB 20Hz - 20KHz | |
| Output Load Capability | 1KΩ and higher (Supports 10x paralleled 10KΩ loads) | |
| Stereo Channel Separation | >70dB@1KHz | |
| Control | ||
| Control Part | (1) Test Pattern button, (1)1080P → 4K button, (1) EDID 4 pin DIP switch, (1) FW, (1) IR In, (1) IR Out, (1) RS232 | (1) ARC Mode button, (1) FW, (1) IR In, (1) IR Out, (1) RS232 |
| Control Connector | (1) Micro USB port, (2) 3.5mm jacks, (1) 3-pin terminal block | (1) Micro USB port, (2) 3.5mm jacks, (1) 3-pin terminal block |
| General | ||
| Bandwidth | 18Gbps | |
| HDMI Standard | 2.0 | |
| HDCP Version | 2.2, 1.4 compliant | |
| CEC | Pass through | |
| Bidirectional PoC | Supported | |
| HDMI 2.0 Cable Length | 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, 1080P ≤ 20m | |
| Transmission Standard | HDBaseT | |
| Transmission Distance | 1080P@60Hz ≤230 feet (70 meters), 4K@60Hz ≤ 131 feet (40 meters) | |
| Operation Temperature | -5 ~ 55℃ | |
| Storage Temperature | -25 ~ 70℃ | |
| Relative Humidity | 10%-90% | |
| Power Supply | Input:100V 240V AC; Output:24V DC 1.25A | |
| Power Consumption | 12W (Max) | |
| Dimension (W*H*D) | TX/RX: 140mm x 19.5mm x 84mm | |
| Net Weight | TX:275g, RX:290g | |
