MP-EDU-KIT

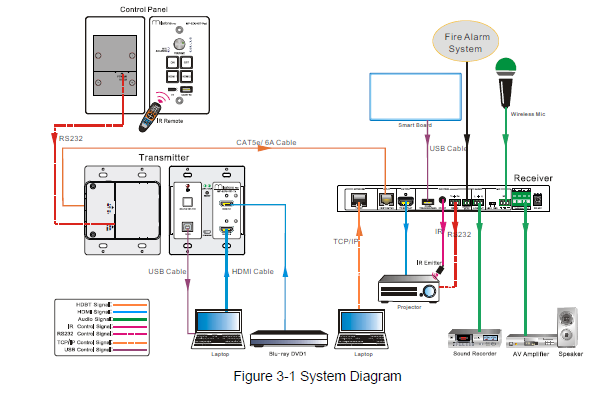

MP-EDU-KIT designed to be used in educational schemes consist of Scaler Wall Plate HDBaseT Transmitter, HDBaseT Receiver and Control Panel. Transmitter provides two HDMI signal inputs, which support HDCP1.4 and can be switched freely. It transmit HDMI signal to Receiver via CAT5e/CAT6a cable, and the maximum distance can up to 30m at 1920x1200@60HZ. Control panel is an easy-to-use control device for presentation show room, classrooms and boardrooms. It has four buttons used to replace four common functions of Remote Controller to control far-end devices, such as projector. MP-EDU-KIT supports front panel button control and Web-based GUI control. Moreover, with its PoC solution, connect the DC adapter to Receiver, Transmitter and Control Panel are able to be energized synchronously.
- Switch freely between two HDMI signal inputs
- HDMI output resolution up to 1920x1200@60HZ
- Support HDCP1.4
- Support MIC input
- 2x20 Watt@4Ohm amplifier output.
- Customizable Control Panel, support IR Learning
- Read and write the data of IR Learning
- Support UPNP
Powered by Froala Editor
Transmitter
| Video Ports | |
| Input Ports | 2 x HDMI |
| Input Connectors | 19-pin Type A HDMI female |
| Output Ports | 1 x HDBT+Power |
| Output Connector | RJ45 |
| Control Ports | 1 x USB 1 x Micro USB |
| General | |
| Resolution | 1920x1080 24/25/30/50/60Hz）,1920x1080 （50/60Hz, 1920x1080i （50/60Hz）,1600x900,1366x768,1280x720,1920x1200,1680x 1050，1440x900，1360x768,1280x800, 1600x1200,1400x1050， 1280x1204,1024x768，800x600,640x480 |
| Deep Color | 24-Bit at 1920x1080（24/25/30/50/60Hz）4:4:4; 48-Bit at 1920x1080（50/60Hz）4:4:4 |
| Signal Extension | Up to 30 meters @ 1080p/60 via Cat5e/6a cable. |
| Bandwidth | 10.2Gbps |
| HDMI Standard | Support HDMI1.4 and HDCP1.4 |
| Temperature | 0 ~ 50℃ |
| Reference Humidity | 10% ~ 90% |
| Dimension (W*H*D) | 105 x 89 x 44 mm |
| Weight | 242g |
Receiver
| Video Ports | |
| Input | 1 x HDBT+Power |
| Input Connector | RJ45 |
| Output | 1 x HDMI |
| Output Connector | 19-pin Type A HDMI female |
| Audio Ports | |
| Input | 1 x MIC |
| Input Connector | 3-pin pluggable terminal block |
| Output | 1 x amplifier（2x20Watt@4Ω）, 1 x analog audio（LINE OUT） |
| Output Connector | 4-pin pluggable terminal block; 3-pin pluggable terminal block |
| Control Ports | 1 x USB-A 1 x IR OUT(3.5mm jack) 1 x RS232 (3-pin pluggable terminal block) 1 x TCP/IP (RJ45) |
| Other Ports | 1 x REMOTE MUTE(2-pin pluggable terminal block) |
| General | |
| Resolution | 1920x1080（24/25/30/50/60Hz），1920x1080（50/60Hz），1920x1080i （ 50/60Hz), 1600x900,1366x768,1280x720,1920x1200,1680x10 50 ， 1440x900 ， 1360x768,1280x800,1600x1200,1400x1050 ， 1280x1204,1024x768，800x600,640x480 |
| Deep Color | 24-Bit at 1920x1080（24/25/30/50/60Hz）4:4:4; 48-Bit at 1920x1080（50/60Hz）4:4:4 |
| Audio Format | HDMI embedded audio: PCM/Dolby/DTS MIC input audio: PCM/Dolby Digital/DTS/DTS-HD Analog output Audio: PCM |
| Signal Extension | Up to 30 meters @ 1080p/60 via Cat5e/6a cable. |
| Bandwidth | 10.2Gbps |
| HDMI Standard | Support HDMI1.4 and HDCP1.4 |
| Power Supply | DC24V 2.71A |
| Power consumption | 55w (Max) |
| Temperature | 0 ~ 50℃ |
| Reference Humidity | 10% ~ 90% |
| Dimension (W*H*D) | 250x 31 x 130 mm |
| Weight | 642g |
Control Panel
| Program Port | 1 x Micro USB |
| Output Port | 1 RS232+Power |
| Others | 1 x Knob 4 x buttons(ON,OFF,HDMI 1,HDMI 2) 1 x IR in-built sensor |
| Temperature | 0 ~ 50℃ |
| Humidity | 10% ~ 90% |
| Case Dimensions | 114x70 x34mm |
| Weight | 140g |
