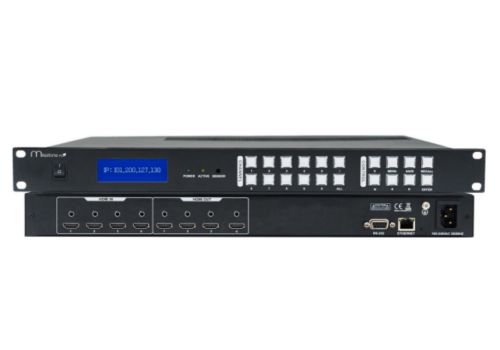

MP-UHD44-VW
The MP-UHD44-VW HDMI Seamless Matrix Switcher features 4 HDMI inputs, 4 seamless HDMI outputs, along with analog audio output. It supports 4K@60Hz 4:4:4 and enables real-time seamless switching. It provides high peak data transfer rate and perfectly supports synchronous switching of HDMI signals, resolution up to 4K@60,4:4:4, create creative video wall layouts through an intuitive web GUI, FPGA-based pure hardware structure can be widely used in stage presentations, digital classroom, video conference rooms,etc.
Features
- 4 HDMI inputs and 4 HDMI outputs with real-time seamless switching;
- Input and output support up to 4K@60, 4:4:4, compatible with HDMI 2.0 and HDCP 2.2;
- Intelligent analysis that automatically analyzes the EDID of display devices to output the best resolution.
- EDID management that supports selecting from multiple built-in EDID files, reading the EDID of output display devices into the input, and updating EDID files;
- Supports input image clipping, allowing part of the input image to be displayed as a signal;
- Supports adding logos to input images;
- Built-in signal generator with 11 professional test images on input and output channels;
- Outputs can be configured for seamless matrix output or single-layer stitching output.

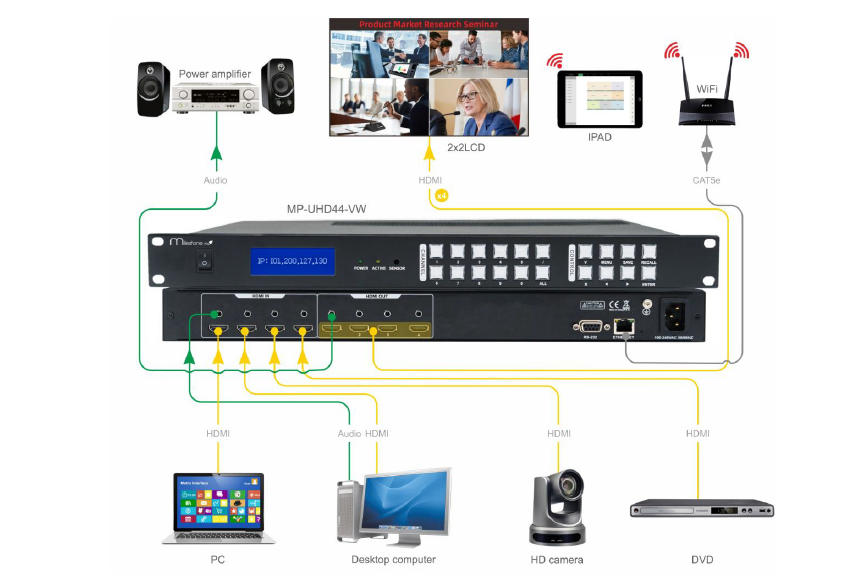

- Supports synchronized stitching for LED or LCD large screens, with a maximum of 2x2 configurations;
- Supports scrolling subtitles on stitched large screens;
- Independent switching for audio.
- Supports multiple flexible stitching configurations for any port to meet various application needs;
- Supports DHCP, with the ability to enable or disable via software or front panel; Various output modes available, including full screen and proportional scaling;
- Supports one-button freeze/unfreeze for output images;
Powered by Froala Editor
Specifications
| Input | 4 HDMI, 4 Analog Audio |
| Output | 4 HDMI, 4 Analog Audio |
| Video Protocol | HDMI 2.0, HDCP 2.2 |
| Max Resolution | Type A, 19-pin female connector |
| HDMI Interface | RS-232 IN, DB9, Female; RS-232 OUT, DB9, Male |
| Serial Interface | 10m |
| Input Cable Length | 10m |
| Output Cable Length | 100±15 Ω |
| Impedance | TCP/IP Protocol |
| RJ45 Control Protocol | Adaptive 10M/100M |
