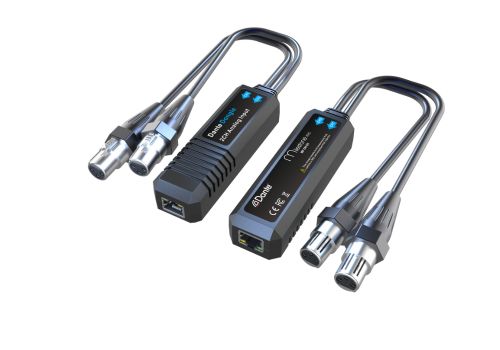

MP-DN-D5
Thanks for choosing the MP-DN-D5. It connects to your Dante network and supports Analog 2X0 channels, allowing the reception of an analog audio signal, converting the analog signal digital signal, and transmitting it through the Dante network.
Features
- Plug and Play
- 24-bit audio support
- 2X0 audio channels
- Supports 802.3af PoE
Powered by Froala Editor
| Max signal level | +24dBu |
| Frequency Response | 20Hzto 20kHz(-/+0.5dB ) |
| Impedance | 20kOhm balanced 10kOhm unbalanced |
| Dynamic Range | >100dB |
| Signal to Noise Ratio | >100dB |
| THD | <0.01%@+4 dBu |
| SampleRate | 44.1kHz, 48kHz,96kHz |
| Bit Depth | 24 |
| Dante Device Latency | 1,2or5ms (configurable usingDante |
| Model Name | Analog2X0 |
