MP-SUH4KVM-3.0S
Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to the real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance. The functions described in this version were updated till November, 2019. In the constant effort to improve the product, we reserve the right to make functions or parameters changes without notice or obligation. Please refer to the dealers for the latest details.
Features
- 4x1 HDMI 2.0 Switcher with KVM
- Supports video resolution up to 4Kx2K@60Hz 4:4:4, HDR 10 and Dolby Vision
- HDCP 2.2 compliant
- Compatible with Windows, Linux, and Mac OS
- 3.5mm stereo audio output for audio de-embedding
- Convenient and cost-effective USB 3.0 peripheral sharing
- Controls four HDMI computers via one keyboard, one mouse, and one monitor
- KVM auto-switching based on TMDS/5V detection
- Controllable by buttons, RS232 commands, and MP-SUH4KVM-3.0GR table grommets

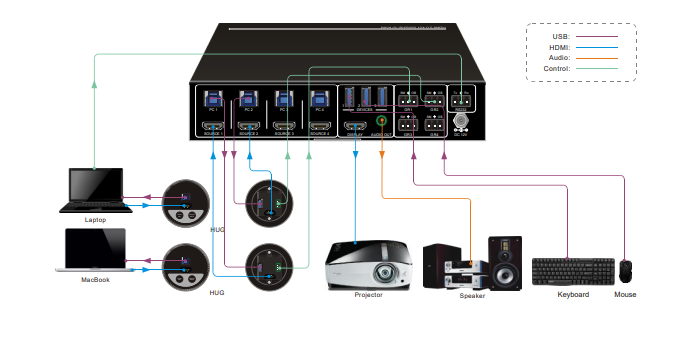

- Simplifies wiring for easy installation
Powered by Froala Editor
Specification
| Input | (4) SOURCE 1~4 |
| Input Connector | (4) Female type-A HDMI |
| HDMI Input Resolution | Up to 4Kx2K@60Hz 4:4:4, HDR10, Dolby Vision |
| HDMI Standard | 2.0 |
| HDCP Version | 2.2 |
| Output | (1) DISPLAY |
| Output Connector | (1) Female type-A HDMI |
| HDMI Output Resolution | Up to 4Kx2K@60Hz 4:4:4, HDR10, Dolby Vision |
| HDMI Standard | 2.0 |
| HDCP Version | 2.2 |
| Output | (1) AUDIO OUT |
| Output Connector | (1) 3.5mm mini stereo audio jack |
| Audio Format | PCM 2CH |
| Frequency Response | 20Hz to 20KHz, ±1dB |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316 mV) nominal consumer line level signal. |
| THD+N | < 0.05%, 20Hz - 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level) |
| SNR | > 80dB, 20Hz - 20KHz bandwidth. |
| Crosstalk Isolation | < -80 dB, 10 kHz sine at 0dBFS level (or max level before clipping) |
| L-R Level Deviation | < 0.05 dB, 1 kHz sine at 0dBFS level (or max level before clipping) |
| Output Load Capability | 1Kohm and higher (supports 10x paralleled 10k ohm loads). |
| Noise Level | -80dB |
| Control | (1) FW, (4) PC 1~4, (3) DEVICES 1~3, (4) GR 1~4, (1) RS232 |
| Control Connector | (1) Micro-USB, (4) Type-B USB, (3) Type-A USB, (5) 3-pin |
