MP-HD-IP400E

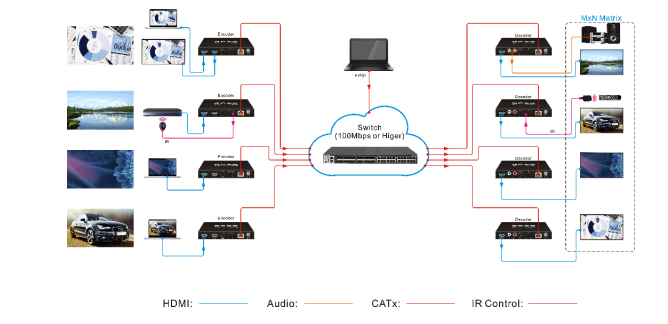

The MP-HD-IP400 is an IP Streaming Encoder/Decoder which use H.264 standard to extend HDMI video, IR, and RS232 control signals overan IP network. It works with one control PC (Wake on LAN) and one switch whose transmission rate is 100Mbps or higher to control a variety of functions. The MP-HD-IP400 features 1080p HDMI video switching, video matrix, audio deembedding, audio switching, IR&RS232 transmission, video recording, PoE, etc. The The control software “IP Streaming Management” merges all functions for user control of the IP streaming system
Features
- Supports H.264 encoding and decoding.
- 1080p video over an IP network.
- Support video extension, video distribution, and video matrix
- Support output video scaling to 720p or 1080p.
- Supports PoE, Encoder/Decoder can be powered by Pa oE Switch
- Support Video Live Preview on the GUI.
- Support Video Broadcasting over the network.
- Supports video recording.
- The encoder features an HDMI loop-out
- Supports audio breakout.
- Supports RTSP, RTP, HTTPFLV, UDP, TCP Protocol
- Supports Unicast and Multicast.
Powered by Froala Editor
Specification
| MP-HD-IP400E | ||
| Video Input | (1) HDMI In | |
| Video Input Connector | (1) Type-A female HDMI | |
| HDMI Input Resolution | Up to 1080p@60Hz 444 10/12bit | |
| Video Output | (1) HDMI Out | |
| Video Output Connector | (1) Type-A female HDMI | |
| HDMI Output Resolution | Up to 1080p@60Hz 444 10/12bit | |
| Control | (1) RS232, (1) IR In, (1) IR Out, (1) LAN (PoE) | |
| Control Connector | (1) 3-pin terminal block, (2) 3.5mm jack, (1) RJ45 | |
| MP-HD-IP400D | ||
| Video Output | (1) HDMI Out | |
| Video Output Connector | (1) Type-A female HDMI | |
| HDMI Output Resolution | Up to 1080p@60Hz 444 10/12bit | |
| Audio Output | (1) Audio Out (L+R) | |
| Audio Output Connector | (1) RCA jack | |
| Control | (1) Storage, (1) RS232, (1) IR In, (1) IR Out, (1) LAN (PoE) | |
| General | ||
| Video Encoding Standard | H.264 | |
| External Power Supply | Input: AC 100~240V, 50/60Hz, Output: 12V DC 1A; PoE supported. | |
| Power Consumption | Encoder:4W (Max); Decoder:3.5W (Max) | |
| Operation Temperature | -5℃ ~ +55℃ | |
| Storage Temperature | -25℃ ~ +70℃ | |
| Relative Humility | 10%-90% | |
| Dimension (W*H*D) | 152.0mm x 21.0mm x 100.0mm | |
| Net Weight | Encoder: 340; Decoder: 345g | |
|
