MP-WP-6K
Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to the real product. This manual is for operation instructions only. The functions described in this version are updated till August 30, 2017. In the constant effort to improve our product, we reserve the right to make functions or parameters changes without notice or obligation. Please refer to the dealers for the latest details.
Features

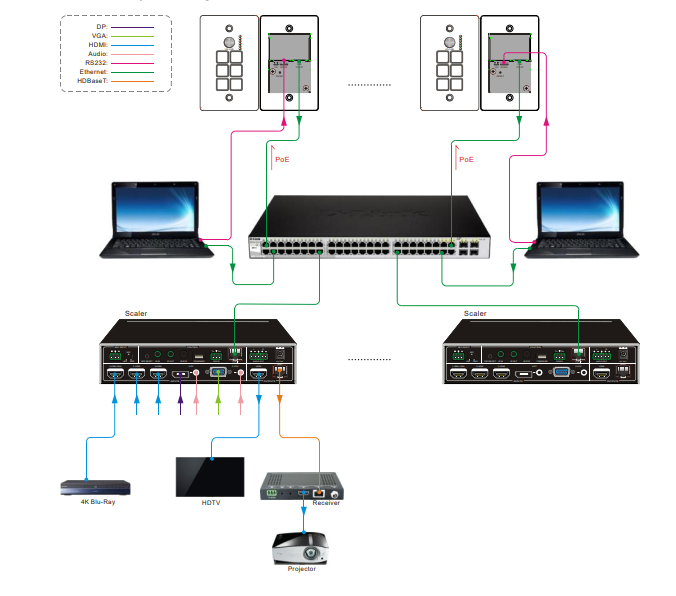

- Remote control panel for IP-based scaler and switcher products.
- Six customizable buttons can be defined in function and trigger mode by TCP/IP and RS232, with changeable labels. This allows system designers and installers to easily place printed labels on the controller under a protective cover.
- It can be powered by Ethernet (PoE)
- Elegant US one-gang design with White Flat Paint coating
- Crystal and backlit buttons with easy, user-friendly,y customizable, changeable labels
- Dimension: 70mm long and 34mm wide
Powered by Froala Editor
Specification
| Control Port | (1) TCP/IP; (1) RS232 |
| Control Connector | (1) RJ45; (1) 3-Pin Pluggable terminal block; |
| Baud Rate And Protocol | 57600 baud, 8 data bits, 1 stop bit, no parity |
| Power Consumption | 1W (Max) |
| Temperature | 20 ~ +70°C |
| Humidity | 10% ~ 90% |
| Power Supply | Input: 100VAC~240VAC, 50/60 Hz; Output: 12VDC 1A |
| Net Weight | 150g |
| Dimensions（W*H*D） | 86mm x 86mm x 41mm |
