MP-HD-44A-E KIT

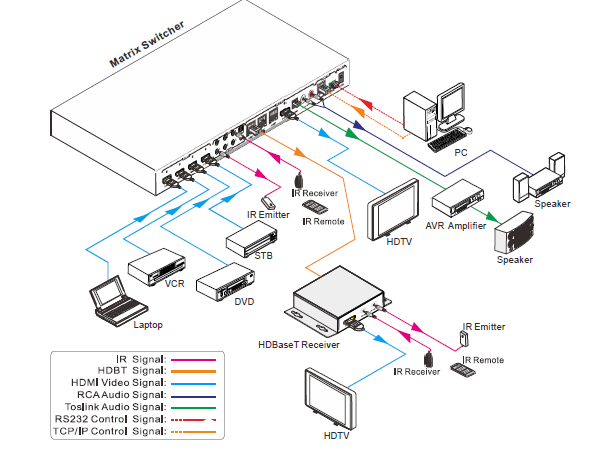

MP-HD-44A-E Kit is a professional 4K HDBaseT Home Distribution Hub Kit, which consists of a 4K HDBaseT Matrix Switcher, 3 HDBaseT Receivers and accessories. The 4K HDBaseT Matrix Switcher is a professional 4x4 HDBaseT Matrix Switcher that consist of the following inputs and outputs,4 HDMI IN (4kx2K@60Hz signal at max), 3 IR IN, 1 IR EYE, 4 IR OUT, 3 HDBaseT OUT, 1 HDMI OUT, 1 SPDIF OUT, 1 L&R RCA OUT, and TCP/IP, RS232 control port via phoenix connector. The HDBaseT Receiver is an HDBaseT Receiver that consists of the following inputs and outputs, 1 HDBaseT IN, 1 IR IN, 1 IR OUT and HDMI OUT. The receiver is powered directly by the Matrix Switcher. All HDMI inputs can be selected by either the front panel buttons, IR, RS 232 or GUI. The selected source is delivered to HDBaseT zoned outputs 1~3 & HDMI Output. The Matrix Switcher is capable of delivering 4K signals up to 40m, 1080p up to 70m and powering the receivers via a single CAT5e cable. The Matrix Switcher supports EDID management and is HDCP 2.2, 1.4 compliant. Audio sources can be selected via RS232 commands and TCP/IP at the Matrix Switcher or by 3rd Party control.
- SupportHDMI1.4 & HDCP2.2, and compliant with lower standards, capable to transmit 4Kx2K@60Hz 4:2:0 & 1080p 3D
- Support manual HDCP management and auto-detecting
- Transmit 4Kx2K signal for 8m via HDMI port, 40m via HDBT port
- Audio source selectable via RS232 command
- 3 HDBaseT outputs, distances up to 70m at 1080p and 40m at 4Kx2K on a single CAT5e/6 cable can be achieved.
- The HDBaseT Receivers are powered by the matrix switcher 12VDC by PoC technology.
- LED indicators show real-time switching status.
- Controllable via front panel, RS232, IR and TCP/IP
- Support bi-directional IR& RS232 control
- Built-in GUI for TCP/IP control
- Powerful EDID management
- Support non-volatile memory [NVM] for reliable operation.
- Support firmware upgrade through Micro USB port
- Easy installation with rack-mounting design
Powered by Froala Editor
4K HDBaseT Matrix Switcher
| Video Input | |
| Input | 4 x HDMI |
| Input Connector | Female HDMI |
| Input Level | T.M.D.S. 2.9V~3.3V |
| Input Impedance | 100Ω (Differential) |
| HDMI Standard | Support HDMI1.4&HDCP2.2 and is backward compatible with all previous standards. |
| Video Output | |
| Output | 1 x HDMI – 3 x HDbaseT |
| Output Connector | Female HDMI Female RJ45(with LED indicators) |
| Output Level | T.M.D.S. 2.9V~3.3V |
| Output Impedance | 100Ω (Differential) |
| HDMI Standard | Support HDMI1.4&HDCP1.4 and is backward compatible with all previous standards. |
| Video General | |
| Video Signal | HDMI (or DVI-D) |
| Transmission Distance | 1080P@60Hz ≤70m 4Kx2K@60Hz ≤40m |
| Resolution Range | Up to 4Kx2K@60Hz |
| EDID Management | In-built EDID data and manual EDID management |
| Gain | 0dB |
| Bandwidth | 10.2Gbit/s |
| Switching Speed | 200ns (Max.) |
| Audio General | |
| Output Signal | Stereo audio Digital audio |
| Analog Audio Output | Support PCM |
| Digital Audio Output | Supports PCM，Dolby，DTS，DTS-HD |
| Frequency Response | 20Hz~20KHz |
| Output Connector | 1 x L&R(RCA) 1 x SPDIF |
| Control Parts | |
| Control Ports | 4 x IR OUT 3 x IR IN 1 x IR EYE 1 x TCP/IP (female RJ45) 1 x RS232 (3-pin pluggable terminal block) |
| Panel Control | Front panel buttons |
| RS232 Control | 3-pin pluggable terminal block |
| IR | Extended IR receiver |
| TCP/IP Control | Web-based GUI |
| General | |
| Power Supply | Input: 100-240V~, 50/60Hz Output: DC 24V 2.71A |
| Power Consumption | 35W (Max) |
| Temperature | 0~ +50℃ |
| Reference Humidity | 10% ~ 90% |
| Dimension (W*H*D) | 360mm x 28mm x 150mm |
| Net weight | 910g |
HDBaseT Receiver
| Input & Output | |
| Input | 1 x HDBaseT |
| Input Connector | Female RJ45(with LED indicators) |
| Output | 1 x HDMI |
| Output Connector | Female HDMI |
| Control | 1 x IR IN 1 x IR OUT |
| Control Connector | 3.5mm mini jacks |
| General | |
| Resolution Range | Up to 4K×2K@60Hz |
| Transmission Mode | HDBaseT |
| Transmission Distance | 1080P@60Hz ≤70m 4Kx2K@60Hz ≤40m |
| Bandwidth | 10.2Gbps |
| HDMI Standard | Support HDMI1.4 and HDCP1.4 |
| Temperature | 0~ +50℃ |
| Humidity | 10% ~ 90% |
| Power Supply | Powered by 4K HDBaseT Matrix Switcher. |
| Dimension (W*H*D) | 61mm x 24mm x 120mm |
| Net Weight | 280g |
