MPTP-T70S-H2

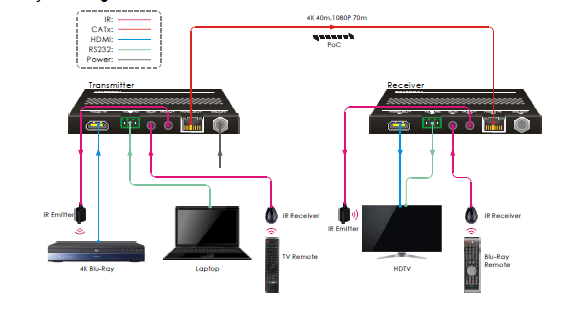

MPTP-T70S-H2 is an ultra-thin HDMI 2.0 Extender that consists of a transmitter and receiver. It extends 1080p/4K HDMI signal over CAT5e/CAT6a cable up to 70m 40m (PoC), and enables IR and RS232 pass through to control source or display device remotely. It also adopts a Visually Lossless Video Compression technology (VLC) to ensure the HD lossless transmission of HDR and 4K@ 60Hz/4:4:4 over CAT5e/CAT6a cable.
- Supports 4K/UHD/60Hz/4:4:4
- Supports HDMI2.0 & HDCP2.2, and is backward compatible to the previous version.
- Maximum transmission distance is up to 40m for 4Kx2K, and 70m for 1080p.
- Supports CEC, IR and RS232 pass-through for long-distance control.
- Supports bi-directional PoC for simplified wiring.
- Supports HDR.
- Features DIP switcher for choosing RS232 mode: Control, Update A, Update B.
Powered by Froala Editor
| Trasnmitter | Receiver | |
| Input | HDMI IN | HDBT IN |
| Output | HDBT OUT | HDMI OUT |
| Control Ports | IR IN, IR OUT, RS232 | IR IN, IR OUT, RS232 |
| General | ||
| Transmission Mode & Distance | HDBaseT; 1080p ≤ 70 m; 4K×2K ≤ 40m | |
| Resolution | Up to 4K×2K@60Hz 4:4:4 | |
| Bandwidth | 18Gbps | |
| HDMI Standard | HDMI2.0 & HDCP2.2 | |
| Power Consumption | 14W (max) | |
| Temperature | -10℃~ 50℃ | |
| Humidity | 0% ~ 90% | |
| Power Supply | Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC 2A | |
| Dimension (W*H*D) | 115mm x 12 mm x 84mm | 115mm x 12 mm x 84mm |
| Net Weight (g) | 240g | 240g |
