MP-UB21-3.2

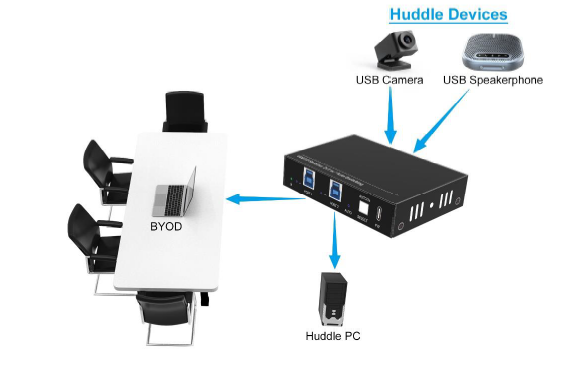

MP-UB21-3.2 10G hub, which is designed to switch the host and connect KVM devices to control the host. The hub can be controlled by button in front panel, RS232 and GPIO.
- 2x1 USB 3.2 switcher, 10G;
- Supports auto switching;
- Sufficient power(2A) for latest camera;
- Support button, RS232 and GPIO control
Powered by Froala Editor
| HOST | |
| Host | (2) USB-B |
| Host Connector | (2) USB-B |
| Bandwidth | Up to 10Gbps |
| DEVICES | |
| Devices | (3) USB-A (1) USB-C |
| Device Connector | (3) USB-A (1) USB-C |
| Current | Three USB-A and one USB-C share 2A total current |
| Control | |
| Control Ports | (1) Button, (1) RS232, (1) GPIO |
| Control Connector | (1) White non-luminous button, (1) 3-pin terminal block, (1) 1-pin terminal block |
| Power | |
| Power Ports | (1) 12V 2A DC IN |
| Power Connector | (1) Locking block |
| General | |
| Bandwidth | 10Gbps |
| USB Version | USB3.2 gen2 |
| Maximum Power Consumption | 10.65W |
| Operation Temperature | -5~ +55℃ |
| Storage Temperature | -25 ~ +70℃ |
| Relative Humidity | 10% ~ 90% |
| Dimension (W*H*D) | 112mm x 21.7mm x 90mm |
| Net Weight | 245g |
