MPTP-T70S-H1
MP-TP-T70S-H1 is a point-to-point HDMI extender set for HDMI V2.0 and IR signals, this kit supports 4K/UHD video @ 60Hz with 4:4:4 Chroma sampling, as well as HDMI data rates up to 18Gbps and HDCP 2.2 compliant. It provides HDMI transmission up to 230 feet (70 meters) for 4K@60Hz 4:4: 4, or 262 feet (80 meters) for 1080p over single CAT5e/6 cable. It supports bi-directional IR, RS232 and 12V PoC, and automatic video resolution down-scaling.
- Supports HDMI V2.0, up to 4K@60Hz 4:4:4, HDR 10, 18G, HDCP 2.2/2.3.
- Extends 4K HDMI signal up to 230 feet (70 meters), or 1080p HDMI signal up to 262 feet (80 meters) over a single CAT5e/6 cable.
- Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output on receiver for compatibility with legacy 1080p display device.
- HDMI loop out on transmitter.
- Bi-directional IR and RS232 pass-through.
- Supports bi-directional 12V PoC, only one power supply required.
- Features visually lossless compression with no latency.
- Smart EDID management and CEC Enabled.
- Compact design, easy to install and simple to operate.
Powered by Froala Editor

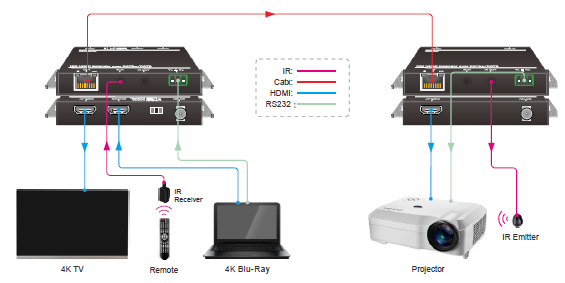

| Transmitter | |
| Input | (1) SOURCE |
| Input Connector | (1) 19-pin type-A female HDMI |
| Output | (1) DISPLAY, (1) CAT OUT |
| Output Connector | (1) 19-pin type-A female HDMI, (1) RJ45 |
| Control | (1) IR IN, (1) IR OUT, (1) RS232 |
| Control Connector | (2) 3.5mm mini jacks, (1) 3-pin terminal block |
| Receiver | |
| Input | (1) CAT IN |
| Input Connector | (1) RJ45 |
| Output | (1) DISPLAY |
| Output Connector | (1) 19-pin type-A female HDMI |
| Control | (1) IR IN, (1) IR OUT, (1) RS232 |
| Control Connector | (2) 3.5mm mini jacks, (1) 3-pin terminal block |
| General | |
| Video Resolution | Up to 4K@60Hz 4:4:4, HDR 10 |
| Color Space | RGB, Rec. 601, and rec. 709 BT2020 |
| HDMI Audio Format | LPCM 7.1 audio, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through. |
| Transmission Distance | 4K: 15 to 70 meters (49 to 230ft) 1080p: 15 to 80 meters (49 to 262ft) |
| HDMI Version | 2.0 |
| HDCP Version | Up to 2.2 (The HDCP content of TX HDMI output follows the remote RX display device’s.) |
| EDID | EDID Setting by 3-pin DIP Switch |
| Power Supply | Input: 100 to 240V AC, 50/60Hz; Output: 12V DC 1A |
| Power Consumption | 5.6W (Max) |
| Operation Temperature | -5 to +55 (+23° to +131°F) |
| Storage Temperature | -25 to +70 (-13° to +158°F) |
| Relative Humidity | 10% to 90%, Non-condensing |
| Dimensions (W*H*D) | 100mm x 16mm x 80mm (without mounting ears) 127mm x 16mm x 80mm (with mounting ears) |
| Net Weight | Tx/Rx: 185g |
