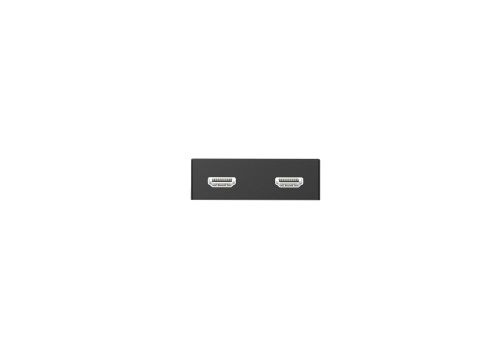

MP-IP-HD-RX
The MP-IP-HD-RX is a receiver designed to match with MP-IP-HD-TX; the units are HDMI over IP powered by PoE. It supports receiving 1080P 60Hz video, HDCP 1.4 compliant. It supports power by PoE or DC5V power supply for field use; It provides HDMI transmission up to 150 meters for 1080p video over a single CAT6 cable.
Features
- Two power supplies, PoE or DC 5V
- Max 150m transmission distance @1080P video
- IR control.
Powered by Froala Editor
Specification
| Video Resolution Video Resolution | 1080P 60Hz | |
| HDMI Audio Format | LPCM 2ch | |
| Transmission Distance | 150m @1080p | |
| HDMI Version | HDMI 1.3a | |
| HDCP Version | HDCP 1.4 compliant | |
| Delay | 10-30ms(Depands Display) | |
| IR Pass | From Rx to Tx | |
| Power Supply | DC 5V 1A | |
| Operation Temperature | -10~55℃ | |
| Storage Temperature | 25~70℃ | |
|
||
|
