MP-DAC
Thanks for choosing this product. Please read this user manual carefully before using this product. The functions described in this version are updated as of July 20, 2023. In the constant effort to improve our product, we reserve the right to make functions or parameter changes without notice or obligation.
Features

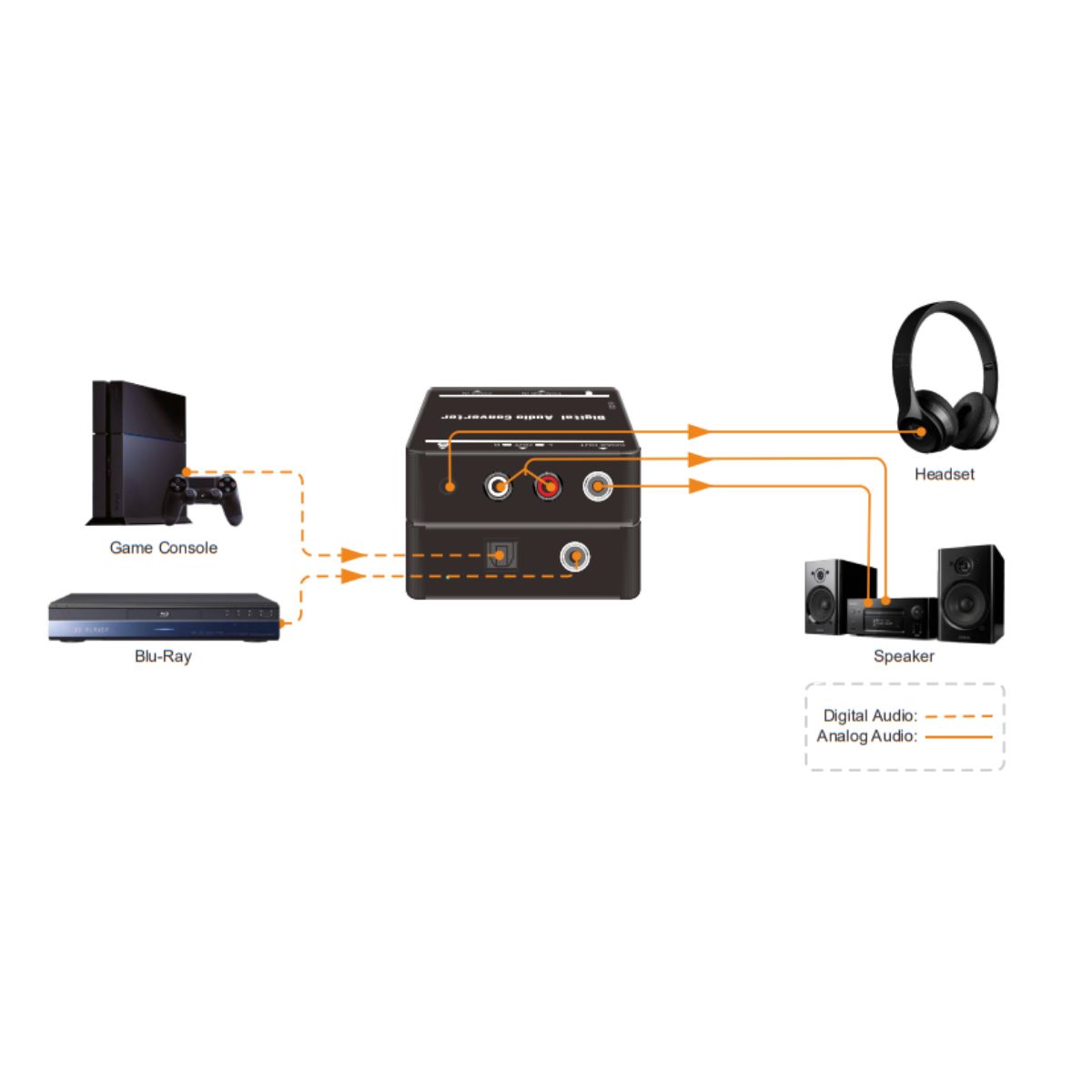

- Supports audio distribution, splitting one audio source into three audio outputs.
- Converts coaxial or Toslink digital audio input to an analog/Rand 3.5mm audio output.
- COAX SPDIF output for digital audio extension
- Supports up to 24-bit/192 KHz input (PCM, Dolby Digital, or DTS formats for digital audio extension only).
- Provides a Micro-USB port for a power cable connection.
- Easy to install and simple to operate
- Compatible with coaxial or Toslink interface digital audio devices: CD/DVD, PS3, X-Box360, Blu-ray player, Computer, A /V receiver, etc.
- Ideal for interfacing between modern digital audio/video devices with analog amplifiers or self-powered speakers.
Powered by Froala Editor
Technical Specification

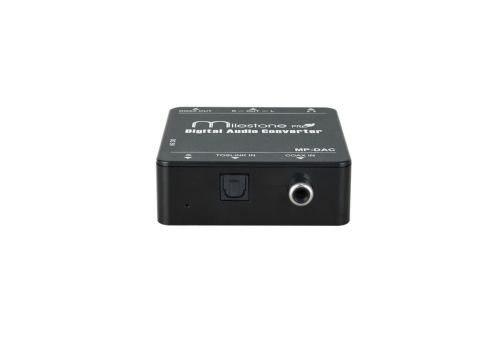

| Audio Input | (1) TOSLINK IN, (1) COAXIN | |
| Audio Format | LPCM 2CH, Dolby Digital 2/5.1CH, DTS2/5.1CH (Only PCMsupports format conversion) | |
| Sample Rate | 32, 44.1, 48, 96, 192KHz, up to 24bit | |

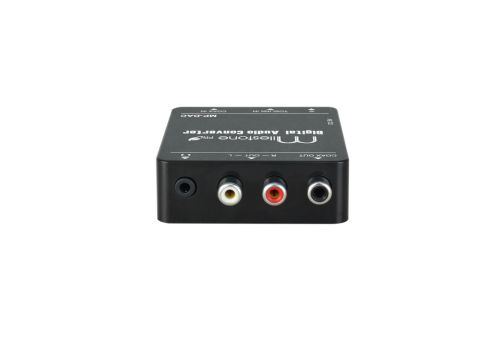

| Audio Output | (1) 3.5mm stereo audio, (1) L-OUT-R(RCA) | |
| Audio Format | PCM | |
| Frequency Response | 20Hz – 20KHz, ±3dB | |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V = 16dBheadroomabove -10dBV (316mV) nominal consumerline level signal | |
| THD+N | < 0.05% (-80dB), 20Hz – 20KHzbandwidth | |
| SNR | > 80dB, 20Hz-20 kHz bandwidth | |
| Crosstalk Isolation | < -80dB, 10KHz sine at 0dBFSlevel (ormaxlevel before clipping) | |
| L-R Level Deviation | < 0.3dB, 1KHz sine at 0dBFSlevel (ormaxlevel before clipping) | |
| Output Load Capability | 1KΩ and higher (Supports 10xparalleled10KΩ loads) | |
| Background Noise | < -80dB | |
| Audio Output | (1) COAX OUT | |
| Audio Format | LPCM 2CH, Dolby Digital 2/5.1CH, DTS2/5.1CH (Only PCMsupports format conversion) | |
| Output Level | ±0.05dBFS | |
| Frequency Response | 20Hz – 20KHz, ±3dB | |
| THD+N | < 0.05% (-80dB), 20Hz – 20KHzbandwidth,1KHz sine at 0dBFS level (or maxlevel) | |
| SNR | > 90dB, 20Hz-20 kHz bandwidth | |
| Crosstalk Isolation | < -80dB, 10KHz sine at 0dBFSlevel (ormaxlevel before clipping) | |
| L-R Level Deviation | < 0.3dB, 1KHz sine at 0dBFSlevel (ormaxlevel before clipping) | |
| Noise Level | < -90dB | |
| Operation Temperature | 5~ +55℃ | |
| Storage Temperature | -25 ~ +70℃ | |
| Relative Humidity | 10%-90% | |
| Power Supply | Input:100V~240V AC; Output: 5VDC1A | |
| Power Consumption | 1.3W (Max) | |
| Dimension (W*H*D) | 66.0mm x 22.5mmx 66.0mm | |
| Net Weight | 50g | |
|
||
|
