MP-SUH43-KVM
MP-SUH43-KVM HDMI 2.0 is a Web-Conferencing Room Switcher! It simplifies meeting room and presentation space system integration by providing two video mode (BYOM mode and Standard mode) with three HDMI inputs, one USB-C input and three HDMI output. The USB-C input supports video, data (USB host) and power charging up to 60w. There is a 4 port USB client hub built with 3 USB host ports that can be switched independently.
- HDMI 2.0 and HDCP 2.2 compliant.
- Video resolution up to 4K@60Hz 4:4:4, 8bit deep color.
- Supports auto switching.
- USB-C input supports power charging up to 60w.
- Provides an audio output for audio de-embedding.

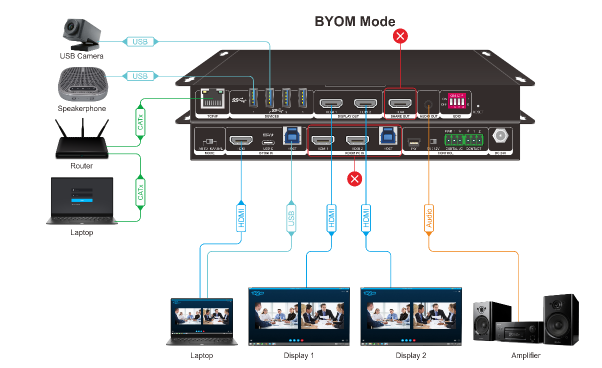

- Automatically switch between the dedicated room system and bring your own meeting (BYOM). Supports audio output volume control.
- Use the same Laptop cable between wired screen sharing and bring your own meetings.
- Send CEC signals to the room displays via events and built-in scheduler.
- Supports EDID management.
- Occupancy sensor integration.
- Controllable via TCP/IP, Digital I/O, contact and front panel
Powered by Froala Editor
| Video Input | |
| Input | (3) HDMI, (1) USB-C |
| Input Connector | (3) Type-A female HDMI, (1) USB-C |
| Input Video Resolution | Up to 4K@60Hz 4:4:4, HDR |
| Video Output | |
| Output | (3) HDMI |
| Output Connector | (3) Type-A Female HDMI |
| Output Video Resolution | HDMI: Up to 4K@60Hz 4:4:4, HDR |
| Audio Output | |
| Output | (1) AUDIO OUT |
| Output Connector | (1) 3.5mm Jack |
| Frequency Response | 20Hz to 20kHz, ±3dB |
| Max Output Level | 2.2 ± 0.1Vrms |
| THD+N | < 0.1%, 20Hz to 20kHz bandwidth, 1 kHz sine at 0dBFS level (or max level) |
| SNR | > 80dB, 20Hz to 20kHz bandwidth |
| Crosstalk Isolation | < -70 dB, 10kHz sine at 0dBFS level |
| L-R Level Deviation | < 0.3 dB, 1kHz sine at 0dBFS level (or max level before clipping) |
| Output Load Capability | 1kΩ and higher (supports 10x paralleled 10KΩ loads) |
| Noise Level | - 75dB |
| Control Part | |
| Control Port | (1) TCP/IP, (1) FIRMWARE, (1) Digital I/O (1) Contact, (2) USB Host, (4) USB Device |
| Control Connector | (1) RJ45, (1) Mini-USB, (2) 3-pin terminal blocks, (2) Type-B USB, (4) Type-B USB |
| General | |
| HDMI Version | Up to 2.0 |
| HDCP Version | Up to 2.2 |
| Bandwidth | 18Gbps |
| Operation Temperature | -5 to +55 (+23° to +131°F) |
| Storage Temperature | -25 to +70 (-13° to +158°F) |
| Relative Humidity | 10% to 90%, Non-condensing |
| External Power Supply | 24V DC 5A |
| Power Consumption | 70W (Max) |
| Dimension (W*H*D) | 220mm x 25mm x 110mm |
| Net Weight | 0.55KG |
