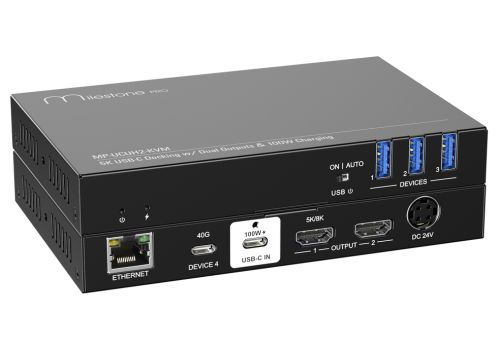

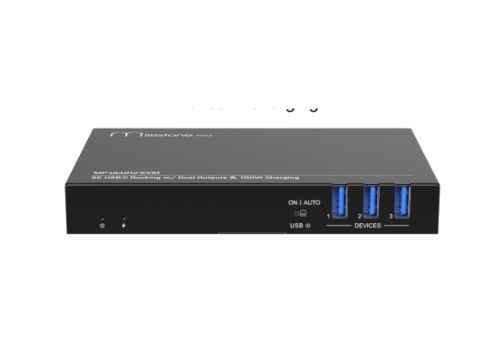

MP-UCUH2-KVM
Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to the real product. This manual is only for operation instructions; please contact the local distributor for maintenance assistance. The functions described in this version were updated by December 2, 2024. In the constant effort to improve the product, we reserve the right to make functions or parameters without notice or obligation. Please refer to the dealers for the latest details .
SAFETY PRECAUTIONS
- Unpack the equipment carefully and save the original box and packing material for possible future shipment.
- Follow basic safety precautions to reduce the risk of fire, electrical shock, and injury to persons.
- Do not dismantle the housing or modify the module. It may result in electrical shock or burn.
- Using supplies or parts not meeting the product’s specifications may cause damage, deterioration, or malfunction.
- Referral servicing to qualified service personnel.
- To prevent fire or shock hazard, do not expose the unit to rain, moisture, or install this product near water.
- Do not put any heavy items on the extension cable in case of extrusion.
- Do not remove the device's housing, as opening or removing it may expose you to dangerous voltage or other hazards.
- Install the device in a well-ventilated area to prevent damage caused by overheating.
- Keep the module away from liquids.
- Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills onto the housing, unplug the module immediately.
- Do not twist or pull by force the ends of the cable. It can cause a malfunction.
- Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.
- Unplug the power cord when left unused for a long time
- Information on disposal for scrapped devices: do not burn or mix with general household waste; please treat them as normal electrical waste.
Powered by Froala Editor
Input | (1)DPAltMode, USB4 | |
InputConnector | (1)USB-C | |
InputResolution | Upto8K@30 | |
Output | (2)HDMI | |
OutputConnector | (2)HDMI2.0Female | |

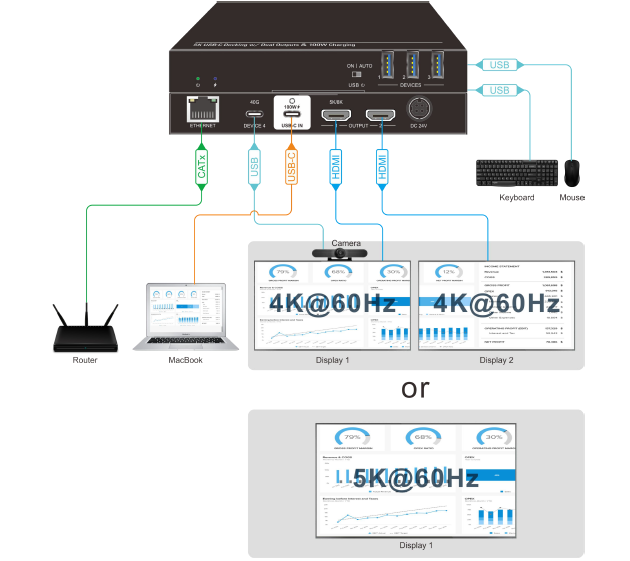

OutputResolution | 8K@30/5K@60Hz(5120x2880)UHDinoutput1 Ordual4K@60Hzdisplayoutputs | |
HDMIStandard | HDMI2.1 | |
HDCPVersion | HDCP1.4/2.2/2.3compatible | |
AudioFormat | PCM2.0audio, DolbyAtmos®, Dolby®TrueHD, DolbyDigital®Plus | |
DataRates | 3xUSB-AdevicesUSB10Gbps 1xUSB-Cdevice:USB10Gbps+DP1.4(40Gbpstotal) | |
