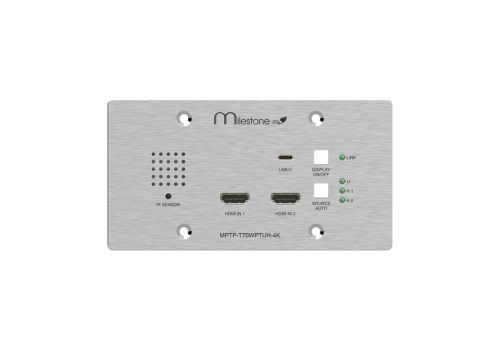

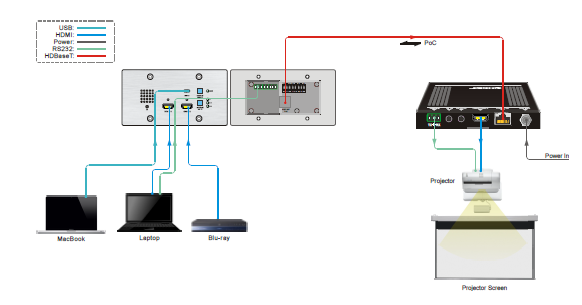

MPTP-T70WPTUH-4K
Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to the real product. This manual is only for operation instructions. Please contact the local distributor for maintenance assistance. The functions described in this version were updated till June 2019. In the constant effort to improve the product, we reserve the right to make functions or parameters without notice or obligation. Please refer to the dealers for the latest details.
Features
- Supports HDMI signal up to 4K@60Hz 4:2:0, Slimport signal up to 4K@30Hz 4:4:4
- Supports the HDMI 1.4 standard and HDCP 2.2 compliant. Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
- . Active input automatic detective
- Extending the HDMI signal 4K@60Hz up to 131ft/40m and 1080P@60Hz up to 229ft/70m
- Supports RS232 pass-through with HDBaseT connection and local control.
- Supports IR pass-through to extend the IR signal to control the display device.
- The DISPLAY ON/OFF button can be programmed by the IR learning feature or the RS232 command.
- The HDBT port supports 24V-48V PoC input and is compatible with 48V PoH.The switcher can be powered from the compatible HDBaseT receiver by the CATx
cable, and it also supports 24V PoC output.
Firmware upgrade via the Micro-USB port.
Powered by Froala Editor
Specification
| Input | (2) HDMI, (1) USB-C (Slimport) |
| Input Connector | (2) Female type A HDMI, (1) Type-C USB, |
| HDMI Input Resolution | Up to 4K/UHD@60Hz 4:2:0 |
| Slimport Input Resolution | Up to 4K/UHD@30Hz 4:4:4 |
| Output | (1) HDBT OUT |
| Output Connector | (1) RJ45 |
| HDBT Output Resolution | Up to 4K/UHD@60Hz 4:2:0 |
| Control Ports | (1) IR, (1) FIRMWARE, (1) RS232, (1) IR IN |
| Control Connector | (1) Built-in IR sensor, (1) Micro-USB, (2) 3-pin terminal block |
| Bandwidth | 10.2Gbps |
| Transmission Mode | HDBaseT |
| HDMI Version | 1.4 |
| HDCP Version | 2.2 |
| Transmission Distance | 4K@60Hz≤40M, 1080P@60Hz≤70M |
| External Power Supply | Input:100V~240V AC; Output: 24VDC 1.25A |
| Power Consumption | 5W max. (408TU only – add extra for HDBaseT receiver) |
| Operation Temperature | -10 ~ +40℃ |
| Storage Temperature | -15 ~ +55℃ |
| Relative Humidity | 10% ~ 90% |
| Dimension (W*H*D) | 151mm x 80mm x 39mm |
