MP-SUH41MV

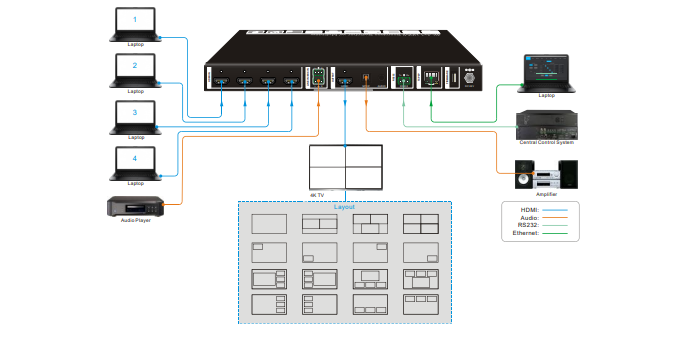

The 4K Multi-view switcher is a seamless video scaler designed to enable a true 4K display. The switcher features four HDMI inputs and one HDMI output, which allows you to display four video sources on one display. It also provides a line input, 1 mix input, 1 SPDIF output, and 1 analog output for audio processing. Control is quick and comprehensive, whether you are using the front panel, the remote control, RS232 commands, or the fully featured web GUI.
Features
- 4 HDMI inputs, 1 HDMI output.
- Supports 4K@30Hz 4:4:4, HDCP 2.2.
- Seamless switch between 4 input ports.
- Auto Scaler in each source input.
- Supports audio embedding and mixing.
- Supports audio de-embedding.
- Auto-switching at a single window.
- Cycles through the windows from A to D by the swap button
- Based on FPGA Technology, the layout and size of the windows can be customized.
- Resizes the windows in 3 different sizes.
- 16 pre-defined layouts for multi-view.
- Multiple control methods, including an assignable front panel, IR remote, web GUI, and RS232 port.
Powered by Froala Editor
Specification
| Video Input | (4) HDMI IN (1~4) |
| Video Input Connector | (4) Type-A female HDMI |
| HDMI Input Resolution | Up to 4K@30Hz 4:4:4 |
| Video Output | (1) HDMI |
| Video Output Connector | (1) Type-A female HDMI |
| HDMI Output Resolution | Up to 4K@30Hz RGB |
| HDMI Standard | HDMI 1.4 |
| HDCP Version | Up to HDCP 2.2 |
| Audio In | (1) LINE IN, (1) MIX IN |
| Audio In Connector | (2) 3-pin terminal connectors |
| Frequency Response | 20Hz to 20kHz, ±3dB |
| Max Input Level | 2.0Vrms ± 0.5 dB. 2V=16 B headroom above -10dBV (316 mV) nominal consumer line level signal |
| L-R level deviation | < 0.3dB, 1kHz sine at 0dBFS level (or max level before clipping) |
| Input Impedance | > 10kohm |
| Audio Format | PCM 2CH |
| SPDIF Out | (1) SPDIF |
| Audio Out Connector | (1) Toslink |
| Max Output level | ±0.05dBFS |
| Frequency Response | 20Hz ~ 20kHz, ±1dB |
| THD+N | < 0.05%, 20Hz ~ 20kHz bandwidth, 1kHz sine at 0 dBFS level (or max level) |
| Signal-to-Noise Ratio | > 90dB, 20Hz-20 kHz bandwidth |
| Crosstalk isolation | < -70dB, 10kHz sine at 0dBFS level (or max level before clipping) |
| Noise | -90dB |
| Audio Format | PCM 2CH |
| Audio Out | (1) AUDIO |
| Audio Out Connector | (1) 3.5mm mini jack |
| Frequency Response | 20Hz ~ 20kHz, ±1dB |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V=16dB headroom above -10dBV (316 mV) nominal consumer line level signal |
| THD+N | < 0.05%, 20Hz ~ 20kHz bandwidth, 1kHz sine at 0dBFS level (or max level) |
| Signal-to-Noise Ratio | > 80dB, 20Hz ~ 20kHz bandwidth |
| Crosstalk Isolation | < -80dB, 10kHz sine at 0dBFS level (or max level before clipping) |
| L-R Level Deviation | < 0.05dB, 1kHz sine at 0dBFS level (or max level before clipping) |
| Output Load Capability | 1kohm and higher (supports 10x paralleled 10kohm loads) |
| Noise | -80dB |
| Control port | (1)RS232, (1)TCP/IP |
| Control Connector | (1) 3-pin terminal connector, (1) RJ45 |
| Operation Temperature | -5℃ ~ +55℃ |
