MP-WP6-IP

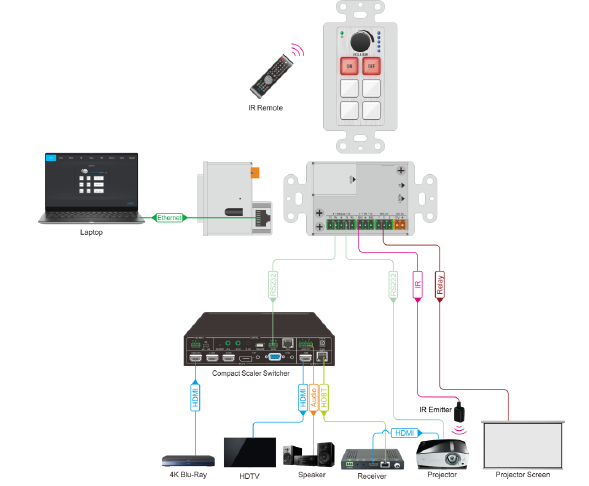

MP-WP6-IP is a Wallplate Control Panel. It has (2) built-in programmable RS232 connectors and (2) Infrared (IR) connectors. The Programmable Control Panel can fully control the compatible switches, as well as third-party devices such as matrix switcher, compact scaler switcher, projectors, screens, etc. Use the device for presentations in showrooms, classrooms, and boardrooms
- Six customizable control buttons;
- One volume control knob;
- Support IR, RS232 and TCP/IP control;
- Can be controlled and configured via GUI;
- Can be powered by PoE
Powered by Froala Editor
| Program Port | TCP/IP |
| Output Port | 2 x RS232, 2 x IR, 2 x Relay |
| Output Connector | 2 x 3-Pin Pluggable termina l b locks, 2 x 2-Pin Pluggable terminal blocks, |
| Baud Rate | 9600 baud, supports 9600,19200,38400,57600,115200 |
| Power Consumption | 2.5W (Max) |
| Operation Temperature | 0 ~ +40℃ |
| Storage Temperature | -10 ~ +55℃ |
| Relative Humidity | 10%~ 90% |
| Power Supply | Input: 12VDC, PoE |
| Net Weight | 155g |
| Case Dimensions（W*H*D） | 50mm x 103.5mm x 50.5mm |
