MP-SC-9T

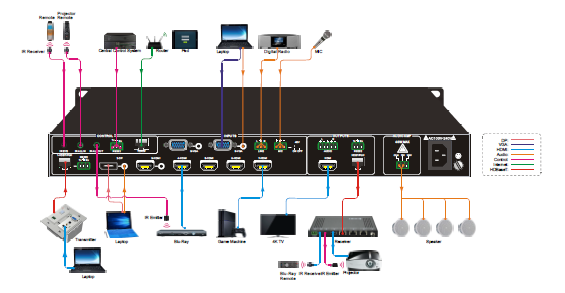

MP-SC-9T is a 9 inputs multi format A/V presentation auto 4k Scaler Switcher that scales video signals to HDMI and HDBaseT outputs simultaneously. The HDBaseT output supports 48V PoH and can connect to a compatible HDBaseT Receiver up to a maximum of 100 meters (328ft). With 1 IR ALL IN and 1 IR ALL OUT, the IR control signals can be transmitted bi-directionally between the MP-SC-9T and compatible HDBaseT Receiver or HDBaseT Transmitter. It can be controlled either by front panel buttons, IR Remote, RS232 or GUI. With a microphone input that supports phantom power and a balanced stereo audio output for audio reinforcement, the MP-SC-9T can handle a myriad of A/V applications.
- Compliant with HDMI 1.4 and HDCP 2.2.
- Supports video source auto-switching function.
- HDBaseT input with distances up to 70m (230ft) at 1080p and 40m (131ft) at 4K on a single CAT5e/6/7 cable.
- HDBaseT output with distances up to 100m (328ft) at 1080p and 70m (230ft) at 4Kx2K on a single CAT5e/6/7 cable.
- Output resolutions selectable to assure preferred output, and supports various output resolutions, such as 1280x720(default), 1920x1080, 1024x768, 1360x768, 3840x2160@30Hz, 3840x2160@60Hz.
- DP, HDMI and VGA video inputs can be embedded with external audio.
- Support Line or Mic audio inputs, and MIC port supports balance/unbalance signal, suppress the external noise effectively.
- Controllable via buttons, IR Remote, RS232 and GUI.
- Powerful OSD function.
- Bi-directional IR and RS232 pass-through.
- Convenient firmware update port.
Powered by Froala Editor
| Video | |
| Input | (1) HDBaseT;(1) Display Port; (5) HDMI; (2) VGA |
| Input Connector | (1) RJ45; (1) Female Display Port; (5) Type A HDMI; (2) 15-pin Female VGA |
| Input Video Resolution | Up to 4Kx2K@60Hz 4:2:0 |
| Video Output | (1) HDMI; (1) HDBaseT |
| Video Output Connector | (1) Type A HDMI; (1) RJ45 |
| Output Video Resolution | 1280x720 (default), 1920x1080, 1024x768, 1360x768, 3840x2160@30Hz, 3840x2160@60Hz |
| Video Standards | HDMI 1.4 and HDCP 2.2 |
| Audio | |
| Audio Input | (1) Stereo Audio Input for 2-DP; (1) Stereo Audio Input for 3-HDMI; (2) Stereo Audio Inputs for 8-VGA and 9-VGA; (1) LINE Audio; (1) MIC Audio |
| Audio Input Connector | (4) 3.5mm Stereo Jacks; (2) 3-pin Phoenix Connector |
| Audio Input Impedance | >10kΩ |
| Audio Output | (1) Dual-Mono Analog Audio; (1) Power Amplifier with Fixed Voltage |
| Audio Output Connector | (1) 5-pin Phoenix Connector; (1) 3-pin Phoenix Connector |
| Audio Output Impedance | 70Ω |
| Frequency Response | 20Hz~20K Hz |
| Stereo Channel Separation | ≥80dB@1KHz |
| Control | |
| Control Port | 1) FIRMWARE; (1) IR EYE; (1) IR ALL IN; (1) IR ALL OUT; (3) RS232; (1) TCP/IP |
| Control Connector | (1) Type-A USB (3) 3.5mm Mini Jacks; (3) 3-pin Phoenix Connectors; (1) RJ45 |
| General | |
| Transmission Distance | HDBaseT Input: 1080p≤70m, 4Kx2K≤40m; HDBaseT Output: 1080p≤100m, 4Kx2K≤70m. |
| Operation Temperature | -10 ~ +55℃ |
| Storage Temperature | -25 ~ +70℃ |
| Relative Humility | 10%-90% |
| External Power Supply | 100V~240V AC |
| Power Consumption | 45W (Max) |
| Dimension (W*H*D) | 436.4mm x 44mm x 276.5mm |
| Net Weight | 3.17Kg |
