MP-DA24-KIT

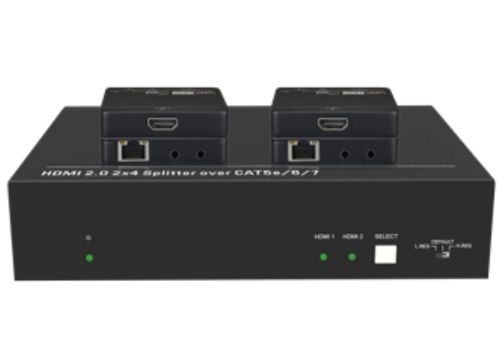

Thanks for choosing this 2x4 HDMI Splitter Kit over CATx cable! This device distributes either one of two HDMI inputs to one HDMI and four CATx outputs. The splitter is designed with an IR loop out, which is intended to cascade to additional units. It supports video resolutions up to 4K@60Hz 4:4:4 8-bit and all HDMI audio formats. It can extend 1080p up to 262 feet (80 meters) and 4K signals to a distance of up to 229 feet (70 meters) over a single CATx Ethernet cable. It supports the 12V PoC feature, which allows the receivers to be powered from the splitter over the Ethernet cables. It supports automatic video resolution down-scaling, bidirectional IR pass-through, and IR cascade, and RS232 control.
Features
- Supports HDMI V2.0, video resolutions up to 4K@60Hz 4:4:4
- Distributes one of two UHD/4K HDMI inputs to four CATx outputs and one HDMI loop output.
- Supports cascade connection, distributing the video signal to multiple video displays.
- Maximum transmission distance is up to 70m for 4K and 80m for 1080p
- Comprehensive EDID management, the lowest/highest/default resolution can be chosen on the front panel for various applications.
- Supports video resolution down-scaling; the 4K input can be automatically degraded to 1080p output on the receiver for compatibility with legacy 1080p display devices.
- Video auto-switching based on 5V or TMDS detection.
- SPDIFandL/Raudio outputs for audio de-embedding.
- Bi-directional IR pass-through and IR cascade control.
- Controllable via front panel button, IR, and RS232.
- Supports 12V PoC; the receiver can be powered by the splitter.
Powered by Froala Editor
| Input | (1)HDMI |
| InputConnector | (1)FemaletypeAHDMI |
| HDMI Input Resolution | Upto4K@60Hz4:4:48bit |
| Output | (1)HDMI,(4)CAT |
| OutputConnector | (1)FemaletypeAHDMI;(4)RJ45 |
| HDMIOutputResolution | Upto4K@60Hz4:4:4 |
| CAT Output Resolution | Upto4K@60Hz4:4:4(Signalhasbeencompressed.) |
| Audio Output | (1)SPDIF |
| Audio Output Connector | (1)Toslink |
| AudioFormat | LPCM2ch,DolbyDigital2ch,5.1ch,7.1ch,DolbyTureHD7.1ch,DTS 2ch,5.1ch |
| Output Level | ±0.05dBFS |
| Frequency Response | 20Hz~20kHz,±1dB |
| THD+N | <0.05%,20Hz~20kHzbandwidth,1kHzsineat0dBFSlevel(ormax level) |
| SNR | >90dB, 20Hz~20kHz bandwidth |
Noise | -90dB |
| AudioOutput | (1) StereobalancedL/R/audio |
| AudioOutputConnector | (1)5-pinterminalblock |
| AudioFormat | PCM |
| FrequencyResponse | 20Hz~20kHz,±1dB |
| Max output level | 2.0Vrms±0.5dB. |
| THD+N | <0.05%,20Hz~20kHzbandwidth,1kHzsineat0dBFSlevel(ormax level) |
| SNR | >80dB, 20Hz~20kHz bandwidth |
| CrosstalkIsolation | >70dB,10kHzsineat0dBFSlevel(ormaxlevelbeforeclipping) |
| L-RLevelDeviation | <0.3dB,1kHzsineat0dBFSlevel (ormaxlevelbeforeclipping) |
| OutputLoadCapability | 1kohmandhigher(supports10xparalleled10kohmloads) |
| Noise | -80dB |
| ControlConnector | (1)EDID,(1)FIRMWARE,(1)IRALLIN,(4)IRIN,(1)IRLOOPOUT, (1)IROUT,(1)RS232IN |
| HDMIStandard | (1)3-pinDIPswitch,(1)USB-A,(7)3.5mmmini jacks,(1)3-pinterminal block |
| HDCPVersion | 2.2 |
| PoC | 4K≤70meters(230ft),1080p≤80meters(266ft) |
| TransmissionDistance | -10~+55℃ |
| OperationTemperature | -25~+70℃ |
| StorageTemperature | 10%~90% |
| RelativeHumidity | 100V~240VAC,50/60Hz |
| InputPower | 12VDC2A |
| PowerConsumption | 14.5W(Max) |
| Dimension(W*H*D) | 200mmx44mmx130mm |
| NetWeight | 200mmx44mmx130mm |
| 855g |
