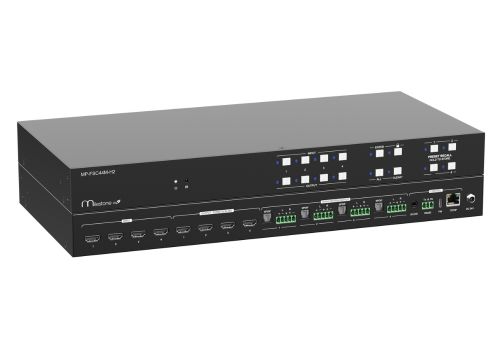

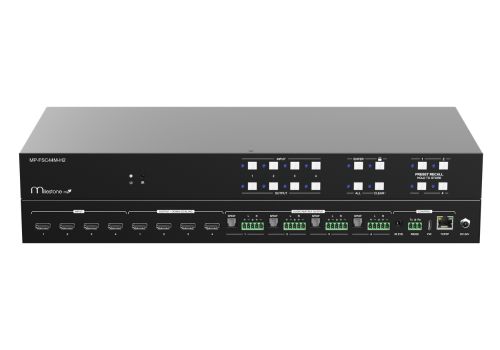

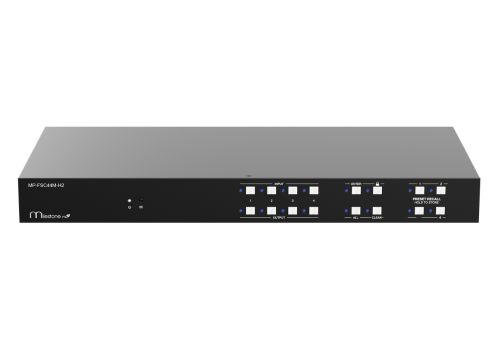

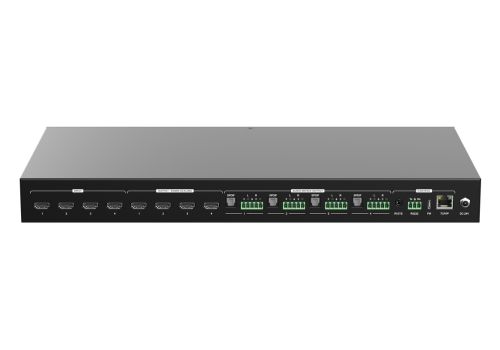

MP-FSC44M-H2
Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to the real product. This manual is only for operation instructions. Please contact the local distributor for maintenance assistance. The functions described in this version were updated as of July 2025. In the constant effort to improve the product, we reserve the right to make functions or parameter changes without notice or obligation. Please refer to the dealers for the latest details.
Features
- 4x4 fast matrix switching up to 2-4 seconds
- Video up to 18Gbps 4K@60 4:4:4.
- Supports audio de-embedded for all outputs.
- Output 1/2 supports automatic downscaling.
- Supports CEC control for source & sink.
- Built-in EDID, EDID learning, and custom EDID.
- Control via front panel buttons, IR, RS-232, or TCP/IP
Powered by Froala Editor
Specification
| Connector | 4x HDMI Type A | |
| Version | HDMI 2.0 | |
| Resolution | Up to 4K@60Hz 4:4:4 | |
| Audio | LPCM 7.1 audio, Dolby Atmos®, Dolby®TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD®MasterAudio™ | |
| HDCP | HDCP 2.2 and backward compatibility | |
| Connector | 4x HDMI Type A | |
| Version | HDMI 2.0 | |
| Resolution | Up to 4K@60Hz 4:4:4 | |
| Audio | LPCM 7.1 audio, Dolby Atmos®, Dolby®TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD®MasterAudio™ | |
| HDCP | HDCP 2.2 and backward compatibility | |
| Downscaling | Output1, Output2 | |
| Frequency Response | 20Hz-20kHz | |
| THD+N | <0.05% | |
| SNR | >80dB | |
| Crosstalk | <-80dB | |
| Frequency Response | 20Hz-20kHz | |
|
||
|
||
|
