MP-HD-IP400

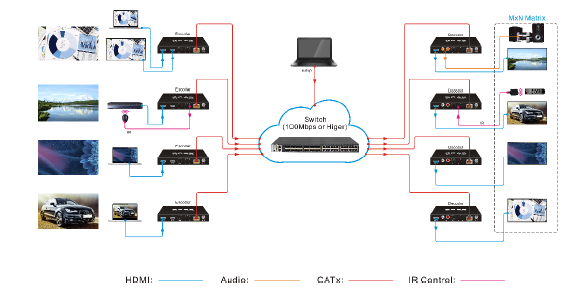

MP-HD-IP400 is an IP Streaming Encoder/Decoder which use H.264 standard to extend HDMI video, IR and RS232 control signals over IP network. It works with one control PC (Wake on LAN) and one switch whose transmission rate is 100Mbps or higher to control a variety of functions. It features 1080p HDMI video switching, video matrix , audio de-embedding, audio switching, IR& RS232 transmission , video recording , PoE, etc. The control software “IP Streaming Management” merge all functions for user control the IP streaming system.
- Supports H.264 encoding and decoding.
- 1080p video over IP network.
- Support video extension, video distribution and video matrix.
- Support output video scaling to 720p or 1080p.
- Supports PoE , Encoder/Decoder can be powered by PoE Switch
- Support Video Live Previe w on the GUI.
- Support Video Broadcasting over network.
- Supports video recording.
- The encoder features HDMI loop out.
- Supports audio breakout.
- Supports RTSP, RTP, HTTP FLV , UDP, TCP Protocol.
- Supports Unicast and Multicast
| MP-HD-IP400E | |
| Video Input | (1) HDMI In |
| Video Input Connector | (1) Type-A female HDMI |
| HDMI Input Resolution | Up to 1080p@60Hz 444 10/12bit |
| Video Output | (1) HDMI Out |
| Video Output Connector | (1) Type-A female HDMI |
| HDMI Output Resolution | Up to 1080p@60Hz 444 10/12bit |
| Control | (1) RS232, (1) IR In, (1) IR Out, (1) LAN (PoE) |
| Control Connector | (1) 3-pin terminal block, (2) 3.5mm jack, (1) RJ45 |
| MP-HD-400D | |
| Video Output | (1) HDMI Out |
| Video Output Connector | (1) Type-A female HDMI |
| HDMI Output Resolution | Up to 1080p@60Hz 444 10/12bit |
| Audio Output | (1) Audio Out (L+R) |
| Audio Output Connector | (1) RCA jack |
| Control | (1) Storage, (1) RS232, (1) IR In, (1) IR Out, (1) LAN (PoE) |
| Control Connector | (1) Type-A USB, (1) 3-pin terminal block, (2) 3.5mm jack, (1) RJ45 |
| General | |
| Video Encoding Standard | H.264 |
| External Power Supply | Input: AC 100~240V, 50/60Hz, Output: 12V DC 1A; PoE supported |
| Power Consumption | Encoder:4W (Max); Decoder:3.5W (Max) |
| Operation Temperature | -5°C ~ +55°C |
| Storage Temperature | -25°C ~ +70°C |
| Relative Humility | 10%-90% |
| Dimension (W*H*D) | 152.0mm x 21.0mm x 100.0mm |
| Net Weight | Encoder: 340; Decoder: 345g |
