MP-SC-21CODEC
MP-SC-21CODEC is a HDMI 2.0 2x1 Presentation Switcher . It is designed to switch HDMI input or USB-C input to one HDMI output. It supports video resolution up to 4Kx2K@60Hz 4:4:4 8 bit , 1080P, and 3D In addition, there is smart built in EDID setting can be selected by the 4 pin DIP switch on the front panel. It supports stereo and multichannel audio on the HDMI inputs. In addition to the audio embedded in the HDMI output stream, the audio is simultaneously de-embedded to a balanced analog audio output. It also supports device extension by providing one type-B USB port for host connection, and two type-A USB ports for HID devices such as camera, microphone, keyboard etc. The sw itcher features multiple methods of control. When in the AUTO mode the switcher will automatically switch to the first detected source device When the active source is removed, the switcher will switch to the lowest numbered input.
- 18G 2x1 switcher with HDMI and USB C inputs.
- Supports automatic switching.
- Controllable via front panel buttons and RS232.
- Supports HDMI 2.0, 4Kx2K@60Hz 4:4:4, HDR 10, Dolby Vision, HDCP 2.2.
- Provides charging on USB C port up to 4 0W.
- Provides USB data (USB 3.0/2.0) and 4K video transmission on USB C port.
- Balanced analog audio f or audio de embedding.

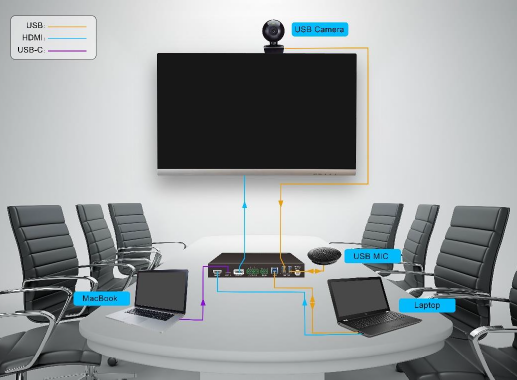

- Peripheral units (e.g. microphone and camera) can be connected by type A USB (USB 3.0/2.0) ports and automatically switched along with HDMI and USB C input as USB DEVICES for corresponding HOST.
- Smart EDID management capable for vari ous applications and customized setting.
- Front panel buttons trigger both CEC and RS232 commands for display control. (ON, OFF, MUTE, VOL+, VOL).
Powered by Froala Editor
| Video | |
| Input | (1) HDMI, (1) USB-C |
| Input Connector | (1) Type-A female HDMI, (1) Type-C USB |
| HDMI Input Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| USB-C Input Resolution | Up to 4Kx2K@30Hz 4:4:4 |
| Output | (1) HDMI |
| Output Connector | (1) Type-A female HDMI |
| HDMI Output Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| HDMI Version | 2.0 |
| HDCP Version | 3.0 |
| HDR 10 | Supported |
| CEC | Supported |
| HPD | Supported |
| Audio | |
| Audio Output | (1) AUDIO OUT (Stereo balanced L/R |
| Audio Output Connector | (1) 5 pin terminal block |
| HDMI Audio Format | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS: X™, and DTS-HD® Master Audio™ pass-through |
| Stereo balanced L/R audio Format | PCM |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal |
| THD+N | <0.05% (-80dB), 20Hz ~ 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level) |
| SNR | >80dB, 20Hz ~ 20KHz bandwidth |
| Crosstalk Isolation | >70dB, 10KHz sine at 0dBFS level (or max level before clipping) |
| L-R Level Deviation | < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping |
| Frequency Response Deviation | <±0.5dB 20Hz ~ 20KHz |
| Output Load Capability | 1KΩ and higher (supports 10x paralleled 10KΩ loads) |
| Stereo Channel Separation | >70dB@1KHz |
| Control | |
| Control | (1) EDID, (1) FW, (1) RS232, (1) HOST, (2) DEVICE |
| Control Connector | (1) 4-pin DIP switch, (1) Micro-USB, (1) 3-pin terminal block, (1) Type B USB 3.0 3.0, (2) Type A USB 3.0 |
| General | |
| HDMI 2.0 Cable Length | 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 10m, 1080P ≤ 15m |
| Bandwidth | 18Gbps |
| Operation Temperature | -10°C ~ +55°C |
| Storage Temperature | -25°C ~ +70°C |
| Relative Humility | 10% ~ 90% |
| External Power Supply | Input: AC 100~240V, 50/60Hz, Output: 24V DC 2.71A |
| Power Consumption | 54W (Max) |
| Dimension (W*H*D) | 168.0mm x 24.5mm x 95.0mm |
| Net Weight | 245g |
