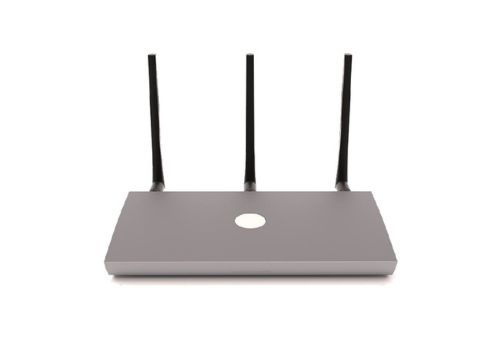

MP-PRO COLLAB KIT
MP-PRO COLLAB is a 2nd generation wireless conference base with one HDMI input up to 4K30 and two HDMI outputs. Wireless input supports up to 4K30. It supports sharing PC content to the display via transmitters, Windows, and macOS clients, and native protocols such as AirPlay, Miracast, and Chromecast, while supporting wireless connection of compatible USB devices such as webcams and microphones via Windows and macOS clients to the PC. Supports dual-screen display and can display 5 devices simultaneously in a multi-view layout. It also has a powerful Web GUI management background through which all these functions can be configured and managed.
Main Features

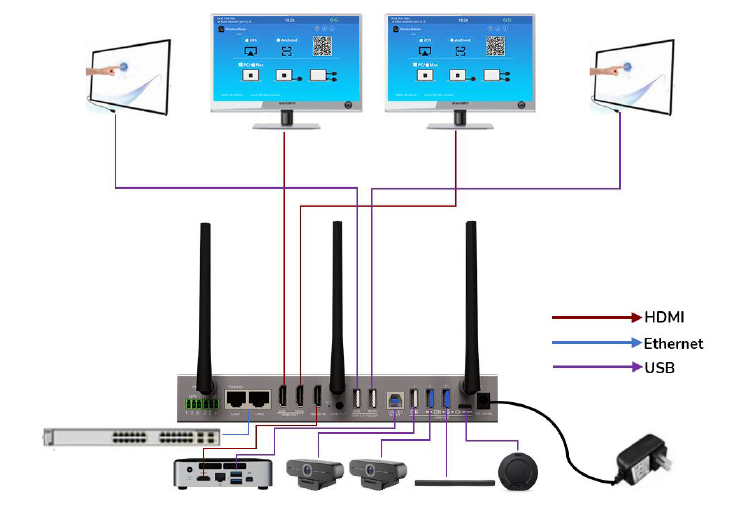

- 2x HDMI outputs enabling content sharing from the same source or different sources.
- Support up to 4 sources shared on a single screen.
- Support 1080P wireless sharing from AirPlay, Miracast, Chromecast, and Wireless Media App.
- Working with both 1080P and 4K wireless transmitters.
- Provide 1x 4K HDMI input.
- Provide 1x USB-B port for the host PC.
- Support USB cam/mic/speaker transmission over wifi.
- Support 2x camera connection and switching.
- Support USB devices switching between local USB-B and wireless laptops.
- Support display content sharing to remote participants over video conference.
- Provide 2x LAN ports for network isolation between staff and guests.
- Support PoE with LAN port 1.
Powered by Froala Editor
Video Output | 2×HDMI type A 19-pin female connector |
| Video Output Resolution | HDMI Main: 3840x2160@60Hz, 3840x2160@30Hz 1920x1080@60Hz, 1280x720@60Hz HDMI Sub: 1920x1080@60Hz, 1280x720@60Hz |
| Video Output Capabilities | HDMI Main: HDMI1.4/HDMI2.0 HDMI Sub: HDMI1.4 |
| Video Output HDCP | HDMI Main: HDCP1.4/HDCP2.2 HDMI Sub: HDCP1.4 |
| Video Input | 1×HDMI type A 19-pin female connector |
| Video Input Resolution | 3840x2160@30Hz, 1920x1080@60Hz, 1280x720@60Hz |
| Video Input Capability | HDMI1.4 |
Video Input HDCP | HDCP1.4 |
| Analog Audio Output | 1×3.5mm computer audio interface |
| LAN Interface | RJ45 x2; 1000Mbps x2 |
| USB Interface | USB3.0: typeA x2, typeC x1; USB2.0: typeA x4, typeC x1; |
| Audio Input | AirPlay, Miracast, Chromecast, Windows/MAC App, WMH, WMC |
| Control Interface | Phoenix terminal 3.5mm RS232 interface |
| GPI Interface | Phoenix terminal 3.5mm 2xGPI |
| Maximum Display Window | ≥4+14 (4 main screens + 14 preview control windows) |
| Maximum Connected Transmit ter | ≥16 |
| Wireless Data Rate | Up to 1200Mbps |
| Video Play Frame Rate | 20-60 FPS |
| Transmission Delay | 80ms/min |
| Wireless Transmission Protocol | WIFI IEEE 802.11 a/g/n/ac/ax |
| Frequency Band | 2.4 GHz & 5 GHz |
| WIFI Antenna | MIMO 2x2, MIMO 1x1 |
| Dimensions (W x D x H) | 220mm x 130mm x 34mm 280mm x 130mm x 34mm (including antenna) |
| Weight | 2.05lbs（930g） |
