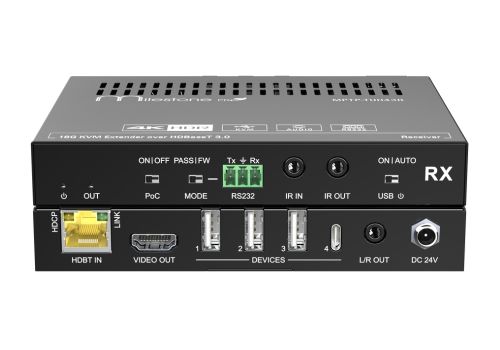

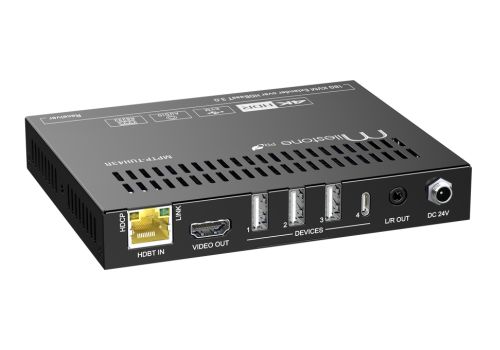

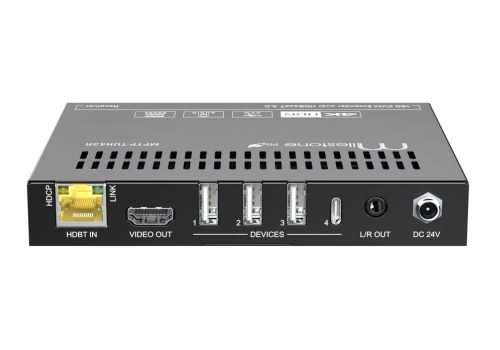

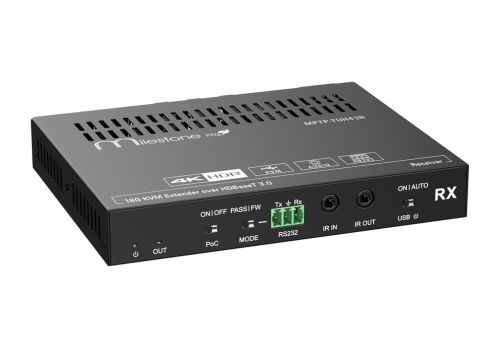

MPTP-TUH43R
Thanks for choosing the 18G KVM Extender Receiver. It can transmit upto40mat 4K@60Hz and 70m at 4K@30Hz via CAT6A cable. It supports audio pass-through and two-way IR, USB extend, and RS232 pass-through. The 24V PoC feature allows the transmitter and the receiver can be powered from each other, and only one power adapter is needed in the system.
Features
- 18Gbps high bandwidth, HDMI V2.0.
- HDMI video resolution up to 4K@60Hz 4:4:4, HDR10, Dolby Vision.
- Supports transmission up to 40m at 4K@60Hz and 70m at 4K@30Hz.
- Two-way IR and RS232 pass-through.
- Supports two-way 24V PoC
- Supports audio pass-through.
Powered by Froala Editor
Technical Specification
| Input | (1) HDBT IN | |
| Input Connector | (1) RJ45 | |
| Input Resolution | Up to 4K@60Hz 4:4:4 | |
| Output | (1) VIDEO OUT | |
| Output Connector | (1) Type-A female HDMI | |
| Output Resolution | Up to 4K@60Hz 4:4:4 | |
| Output | (1) L/R OUT | |
| Output Connector | (1) 3.5mm jack | |
| Audio Format | 3.5mm Audio: PCM 2CH | |
| Frequency Response | 20Hz ~ 20KHz, ±3dB | |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV(316mV) nominal consumer line level signa | |
| THD+N | < 0.05% (-80dB), 20Hz~20KHz bandwidth, 1kHz sine at 0dBFSlevel (ormax level) | |
| SNR | > 85dB, 20Hz-20kHz bandwidth | |
| Crosstalk Isolation | > 70dB, 10kHz sine at 0dBFS level (or max level before clipping) | |
| L-R Level Deviation | < 0.3dB, 1kHz sine at 0dBFS level (or max level before clipping) | |
| Frequency Response Deviation | < ± 0.5dB, 20Hz – 20kHz | |
| Output Load Capability | 1KΩ and higher (Supports 10x paralleled 10KΩ loads) | |
| Stereo Channel Separation | >70dB@1KHz | |
 | ||
 | ||
 | ||
|
|
||
|
|
||
|
|
