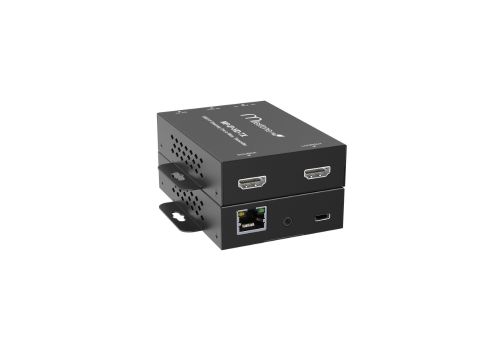

MP-IP-HD-TX
The MP-IP-HD-TX is a Transmitter, designed to match with MP-IP-HD-RX; the units are HDMI over IP powered by PoE. It supports receiving 1080P 60Hz video, HDCP 1.4 compliant. It supports power by PoE or DC5V power supply for field use; It provides HDMI transmission up to 150 meters for 1080p video over a single CAT6 cable.
Features
- Two power supplies: PoE or DC 5V.
- Max 150m transmission distance @1080P video
- HDMI Loopout supported.
- IR control
Powered by Froala Editor
| Video Resolution | 1080P 60Hz | |
| HDMI Audio Format | LPCM 2C | |
| Transmission Distance | 150m @ 1080p | |
| HDMI Version | HDMI 1. | |
| HDCP Version | HDCP 1.4 Compliant | |
| Delay | 10-30ms (Depends on Display) | |
| IR Pass | From Rx to Tx | |
| Power Supply | DC 5V1A | |
| Operation Temperature | -10~55℃ | |
| Storage Temperature | -25~70℃ | |
|
||
|
